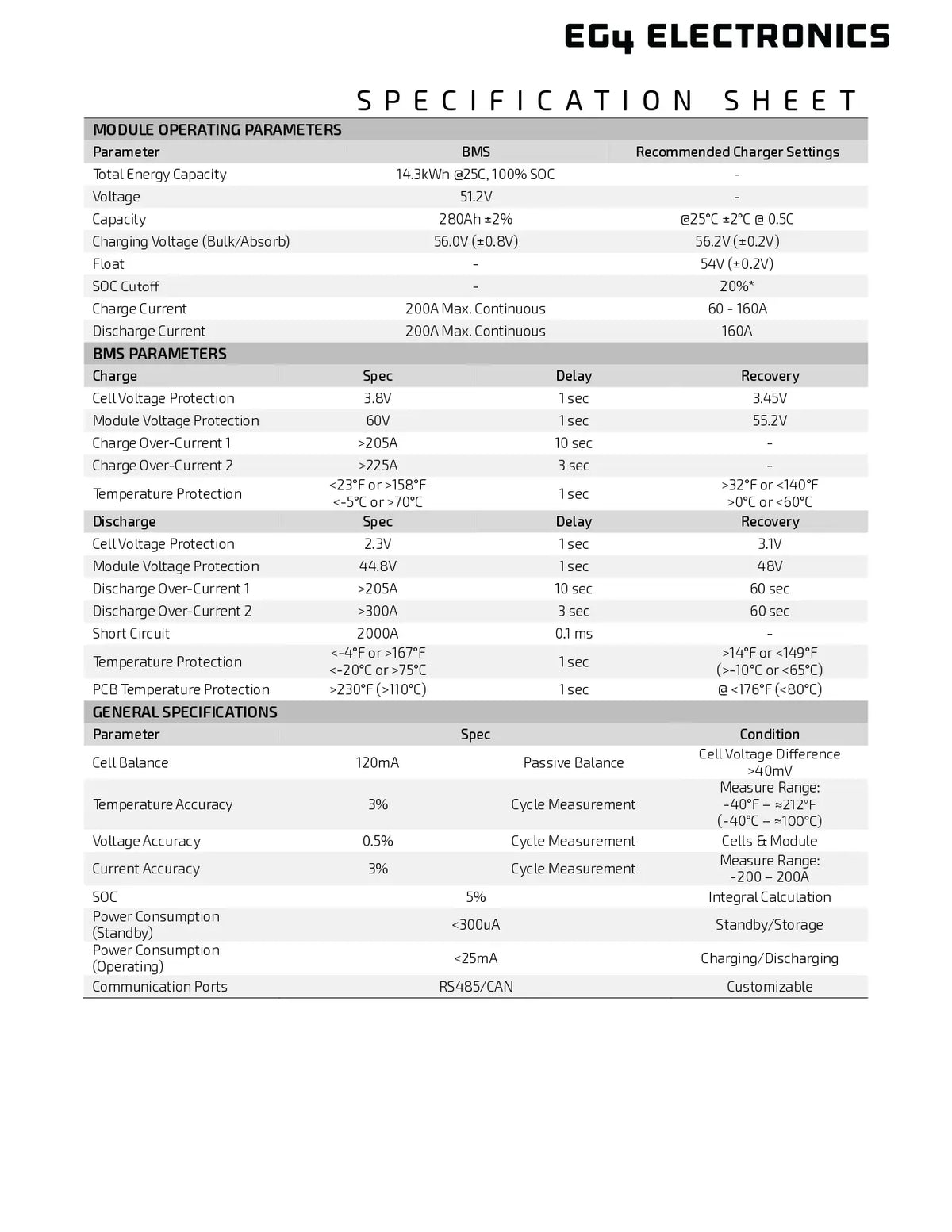

  • A technical specification sheet for an EG4 Electronics module, detailing operating parameters, electrical characteristics, and general specifications in a clean, black-and-white table format.

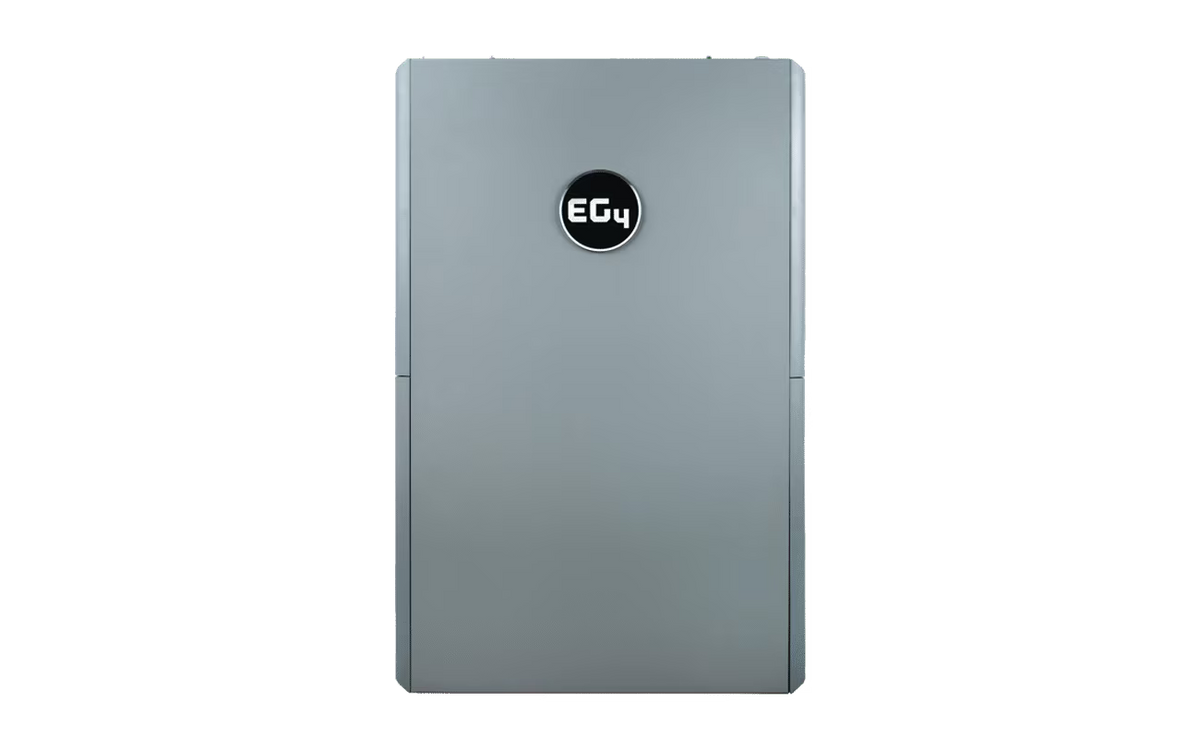

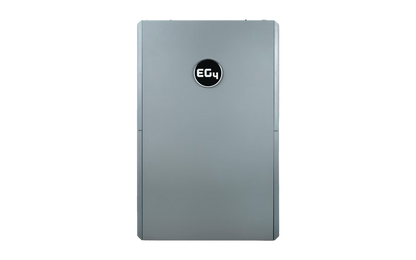

  • A silver-gray rectangular electronic device with rounded corners, featuring a circular black logo badge with the white text 'EG4' on the front, isolated on a solid white background.

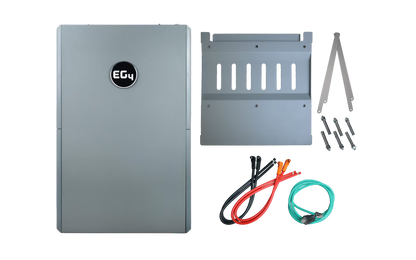

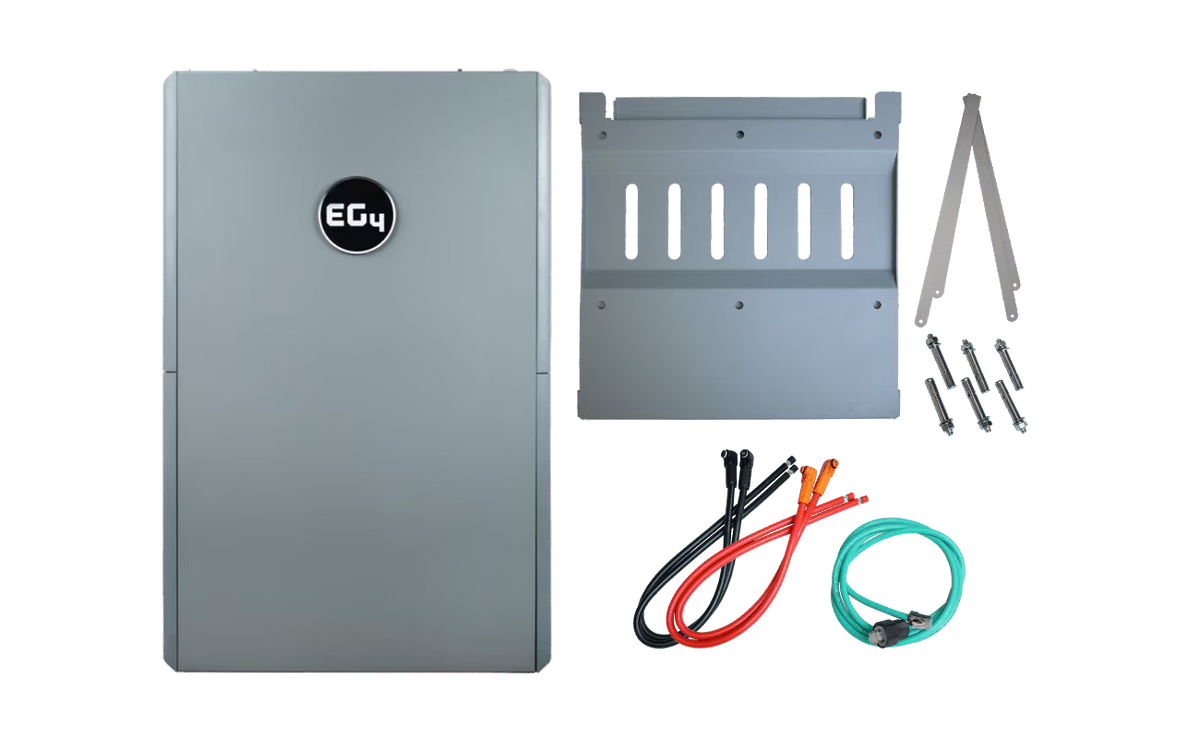

  • EG4 battery module with electrical accessories

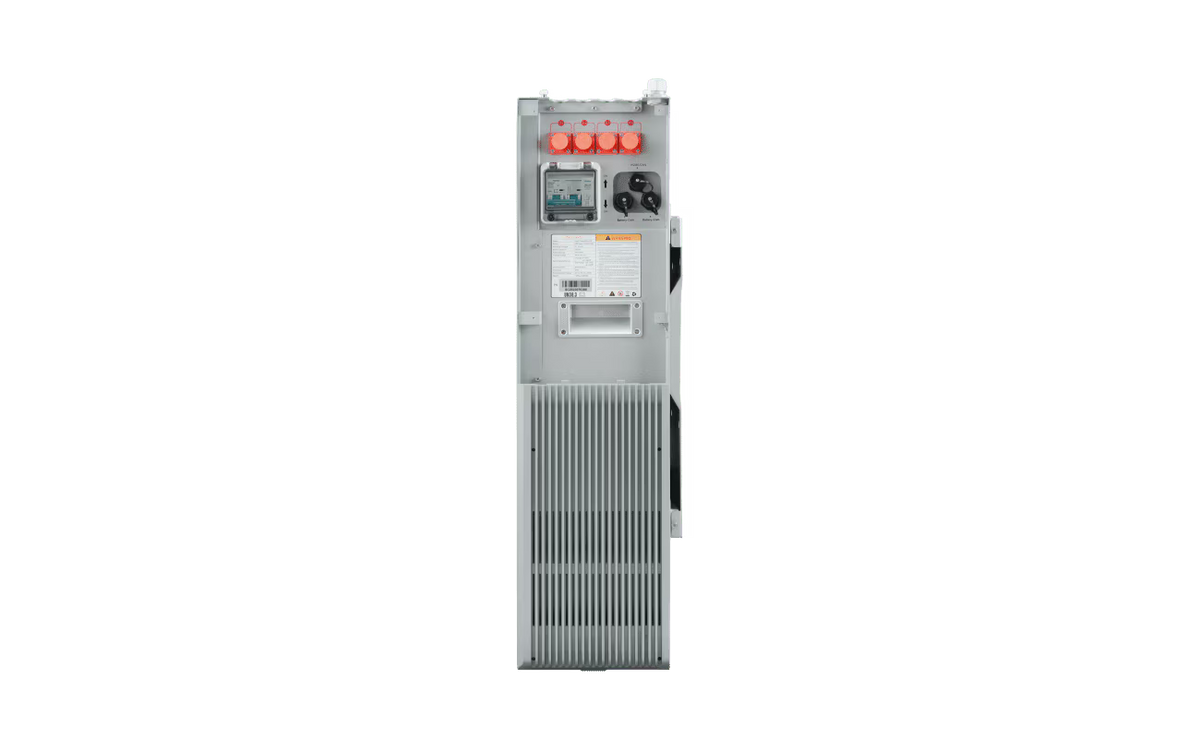

  • A tall, narrow industrial electrical cabinet or power system unit with a gray metal exterior, front ventilation grille, control panel, and red terminal buttons, shown on a plain white background.

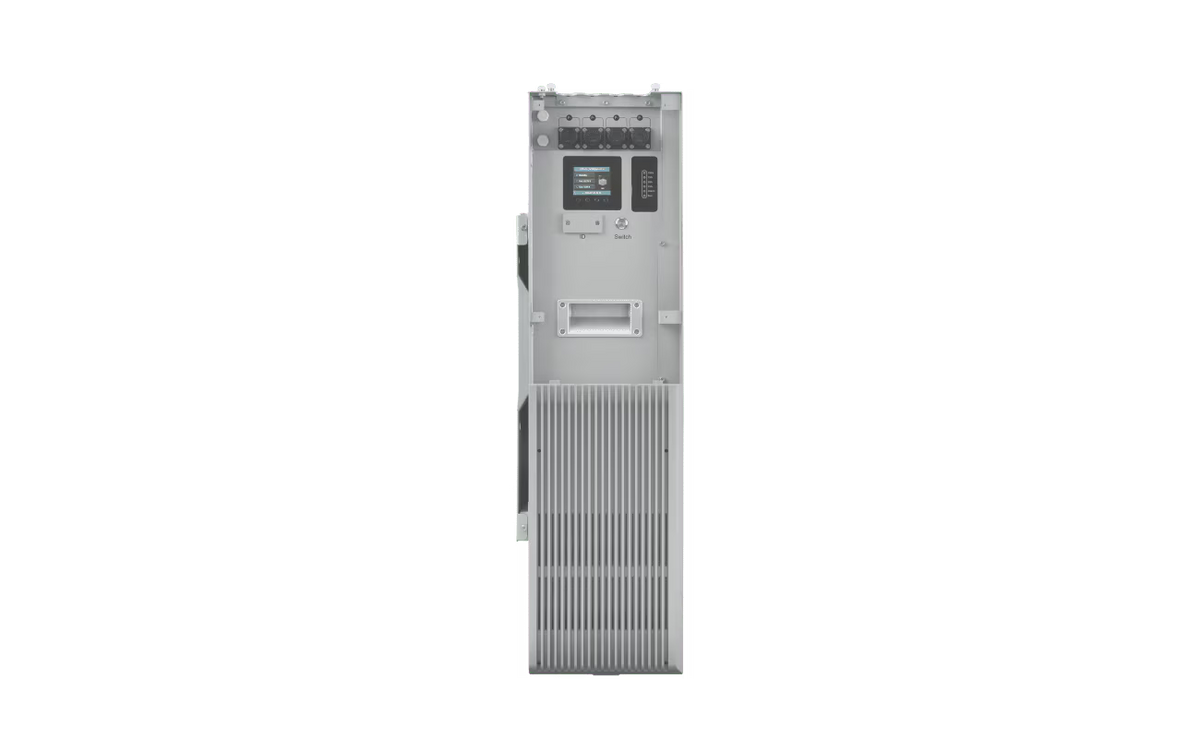

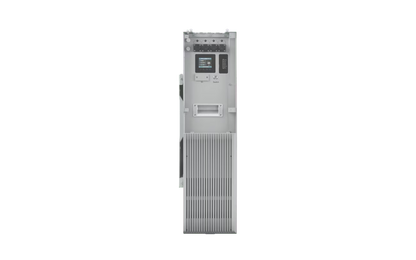

  • A tall, narrow industrial electronic control unit or server chassis shown upright on a plain white background. The unit is primarily light gray/silver with a small dark display screen near the top and a ribbed front grille section near the bottom.

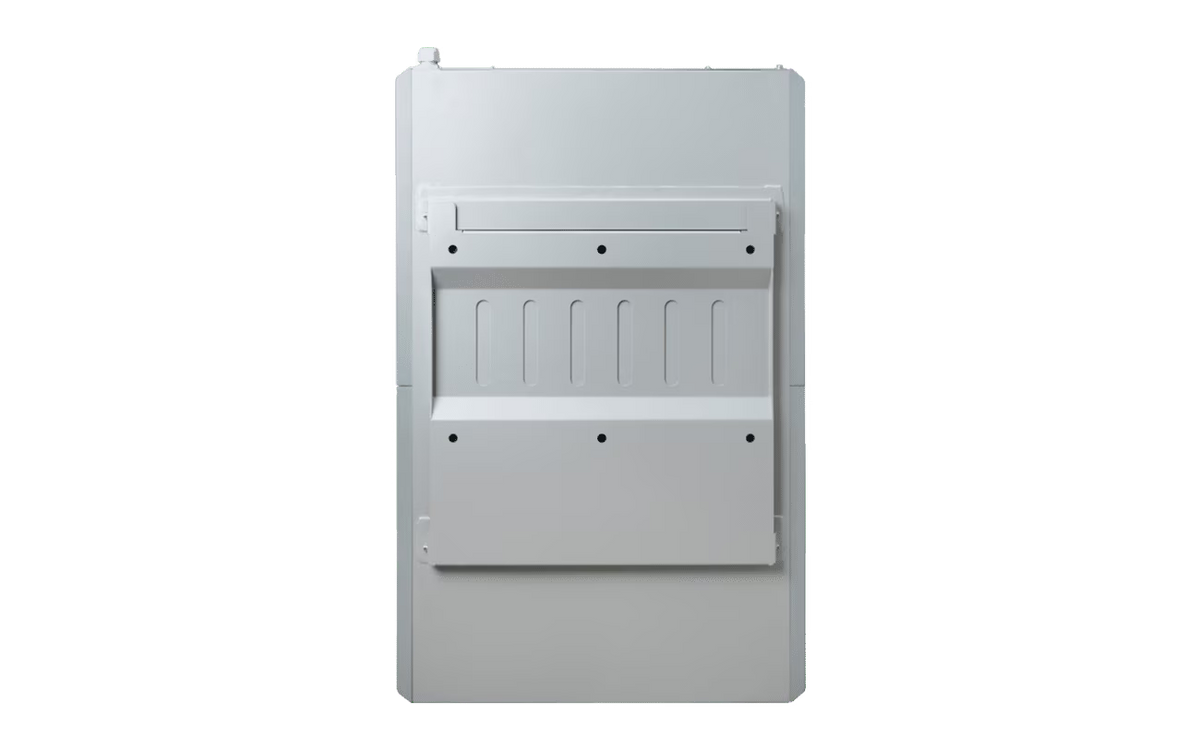

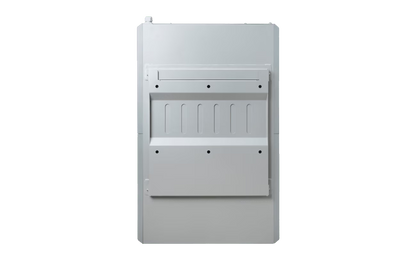

  • back view of eg4 battery module
1 7

EG4 EG4LL48V100AODWMBV2 14.3kWh 280Ah 51.2V Lithium-Ion Battery Module

$5,871.40 USD
$5,871.40 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Integrated Self-Heating: Built-in heating elements automatically warm the battery cells during freezing outdoor ambient conditions, ensuring uninterrupted charging performance down to low temperatures.
✔️ Built-In 600A Busbars & Quick Connects: Includes internal 600A heavy-duty distribution busbars and IP65-rated quick-connect terminals, eliminating the need for an external combiner box when paralleling multiple units.
✔️ Integrated Safety Systems: Equipped with dual fire arrestors for thermal runaway protection, internal 200A BMS management, and a dedicated Emergency Stop (E-Stop) interface compatible with system-wide Rapid Shutdown Disconnects (RSD).
✔️ Closed-Loop Inverter Communications: On-board LCD touchscreen enables closed-loop CAN/RS485 telemetry with supported 48V inverter systems (such as EG4 18kPV, Sol-Ark, Victron, and Schneider).

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    EG4 PowerPro 14.3kWh 280Ah 51.2V Lithium-Ion Battery Module

    The EG4 PowerPro EG4LL48V100AODWMBV2 is a wall-mountable 51.2 V, 280 Ah (14.34 kWh) lithium iron phosphate battery module engineered for residential and commercial energy storage systems. Built with an IP65-rated weather-resistant enclosure, an integrated self-heating function, and dual internal fire suppression modules, it delivers off-grid and grid-tied power across outdoor and indoor environments.

    The battery incorporates an intelligent battery management system (BMS) with passive cell balancing, real-time telemetry via a side-mounted LCD touchscreen display, and an optional emergency stop ESS disconnect interface.

    Technical Specifications:

    • Model: EG4LL48V100AODWMBV2 (also referenced as EG4LL48V100AODWMBV)
    • Battery Type: LiFePO₄ (Lithium Iron Phosphate)
    • Nominal Voltage: 51.2V
    • Capacity: 280Ah
    • Energy Storage: 14.3 kWh
    • Continuous Discharge Current: Up to 140A
    • IP Rating: IP65 (All-Weather Outdoor Rated)
    • Dimensions: 34.6 × 22.3 × 9.1 in.
    • Weight: 308.6 lbs (140 kg)
    • Warranty: 10 Years
    • Certifications: UL 1973, UL 9540A

  • Resources

    Datasheet

    ✔️ Download Datasheet

    Quick Start Guide

    ✔️ Download Quick Start Guide

    User's Manual

    ✔️ Download Quick Start Guide

Download Datasheet of EG4 280Ah Lithium-Ion Battery Module
