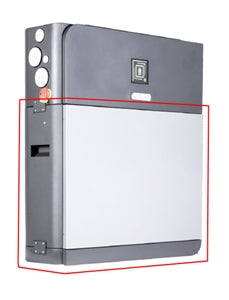

Fortress eForce Module 9.6 kwh 200Ah LFP battery

High-Capacity Stackable Modular Power

The Fortress eForce Module 9.6 kwh 200Ah LFP battery is a stackable 48V energy storage module designed for whole-home backup, solar self-consumption, off-grid systems, and light commercial applications. Engineered with Tier-1 Prismatic 15-cell Lithium Iron Phosphate (LFP) chemistry, this high-performance fortress power LFP battery delivers 9.6 kWh of nominal energy capacity and a 200 Ah rating for demanding load profiles.

Built with an integrated Battery Management System (BMS) module, it supports vertical stacking and multi-module parallel expansion to scale storage capacity as power needs grow. Operating across a voltage window of 39V to 54V with 195A continuous charge and discharge capability, this unit provides 14,400W surge discharge power for 10 seconds to start heavy motor loads

(note: eWay AC/DC wire management box and floor mounts are sold separately).

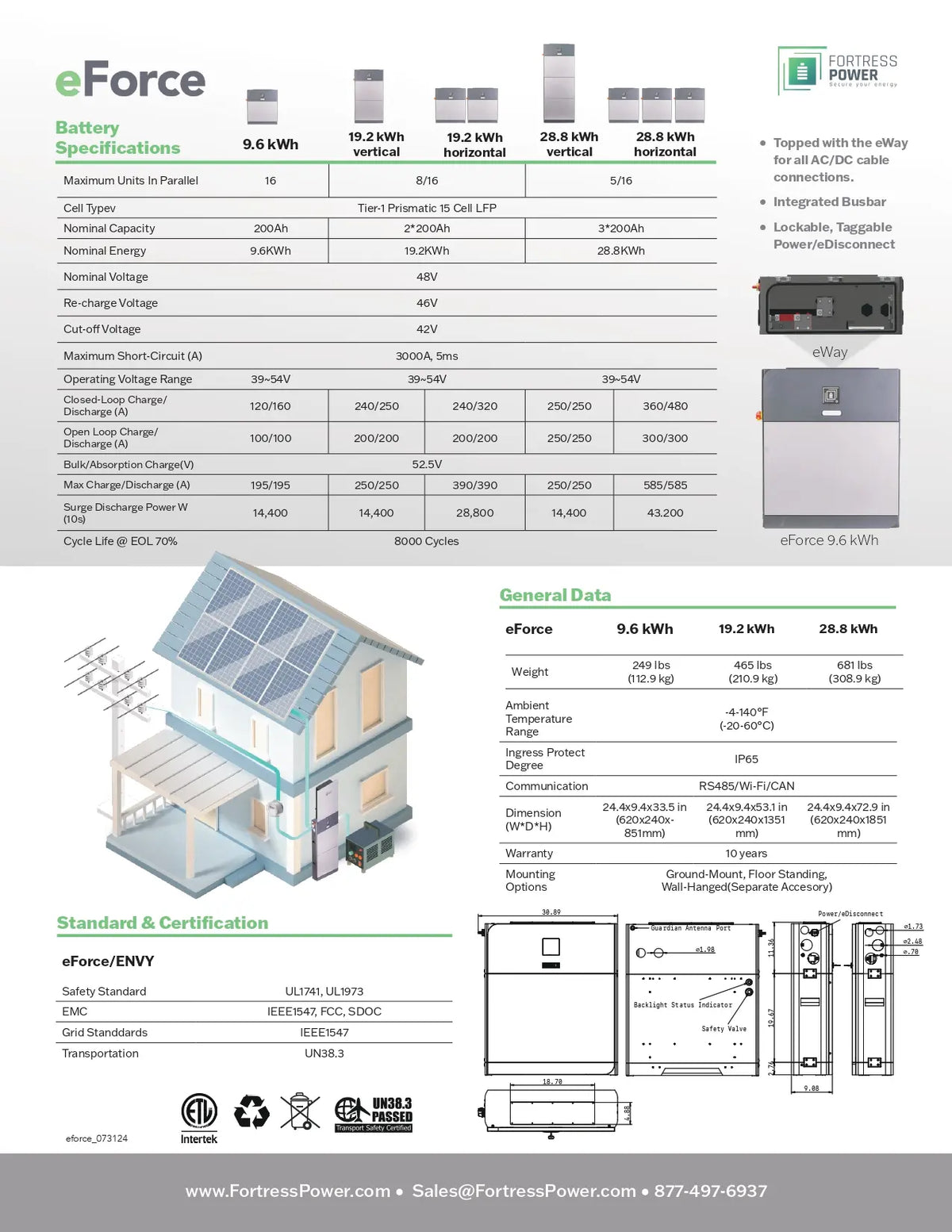

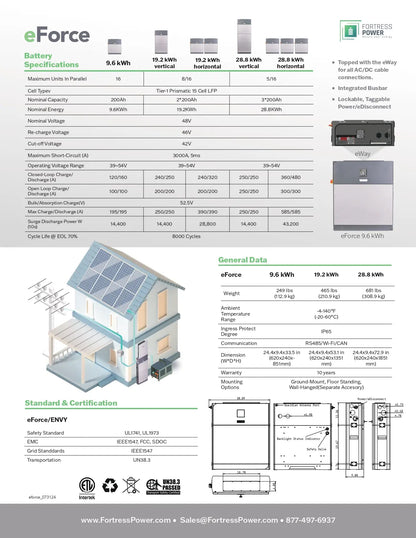

Specifications & Performance Metrics for the eForce 9.6 kWh

• Brand / Manufacturer: Fortress Power
• Nominal Energy: 9.6 kWh
• Nominal Capacity: 200 Ah
• Cell Type: Tier-1 Prismatic, 15-cell LFP
• Nominal Voltage: 48 V
• Recharge Voltage: 46 V
• Cut-off Voltage: 42 V
• Operating Voltage: 39–54 V
• Maximum Charge/Discharge: 195 A / 195 A
• Maximum Short Circuit: 3,000 A / 5 ms
• Surge Discharge Power: 14,400 W for 10 seconds
• Dimensions: 24.4 × 9.4 × 33.5 in (620 × 240 × 851 mm)
• Weight: 249 lb (112.9 kg)
• Hardware Scope Included: Battery Unit with BMS Module Only (eWay Box & Floor Mount Excluded)
• Warranty Coverage: Up to 10-Year Manufacturer Warranty
