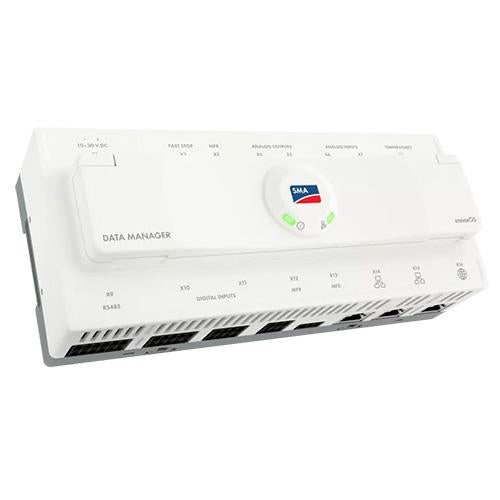

SMA SMA-EDMM-20 ennexOS Data Manager M

SMA SMA-EDMM-20 ennexOS Data Manager M

A future- proof decision: The SMA Data Manager M supports up to 50 devices and provides inputs and outputs for digital and analog signals in order to ensure the necessary flexibility in meeting a wide range of different requirements. With a capacity of 2.5 MVA in closed-loop control mode or 7.5 MVA open-loop control mode and monitoring mode, the SMA Data Manager M is the ideal professional interface for electric utility companies, direct sellers, service technicians and PV system operators. Coordinated user interfaces and intuitive assistance functions simplify operation, parametrization and commissioning, making the SMA Data Manager M the preferred choice for PV application and installation.

Features

• Increased CPU power thanks to a new processor
• Complies with current and future grid-integration requirements
• Optimally connect commercial systems up to 2.5MW in closed loop control, or 7.5 MW in open loop control with the grid
• Enable maximum plant yields with the improved grid connection and integration

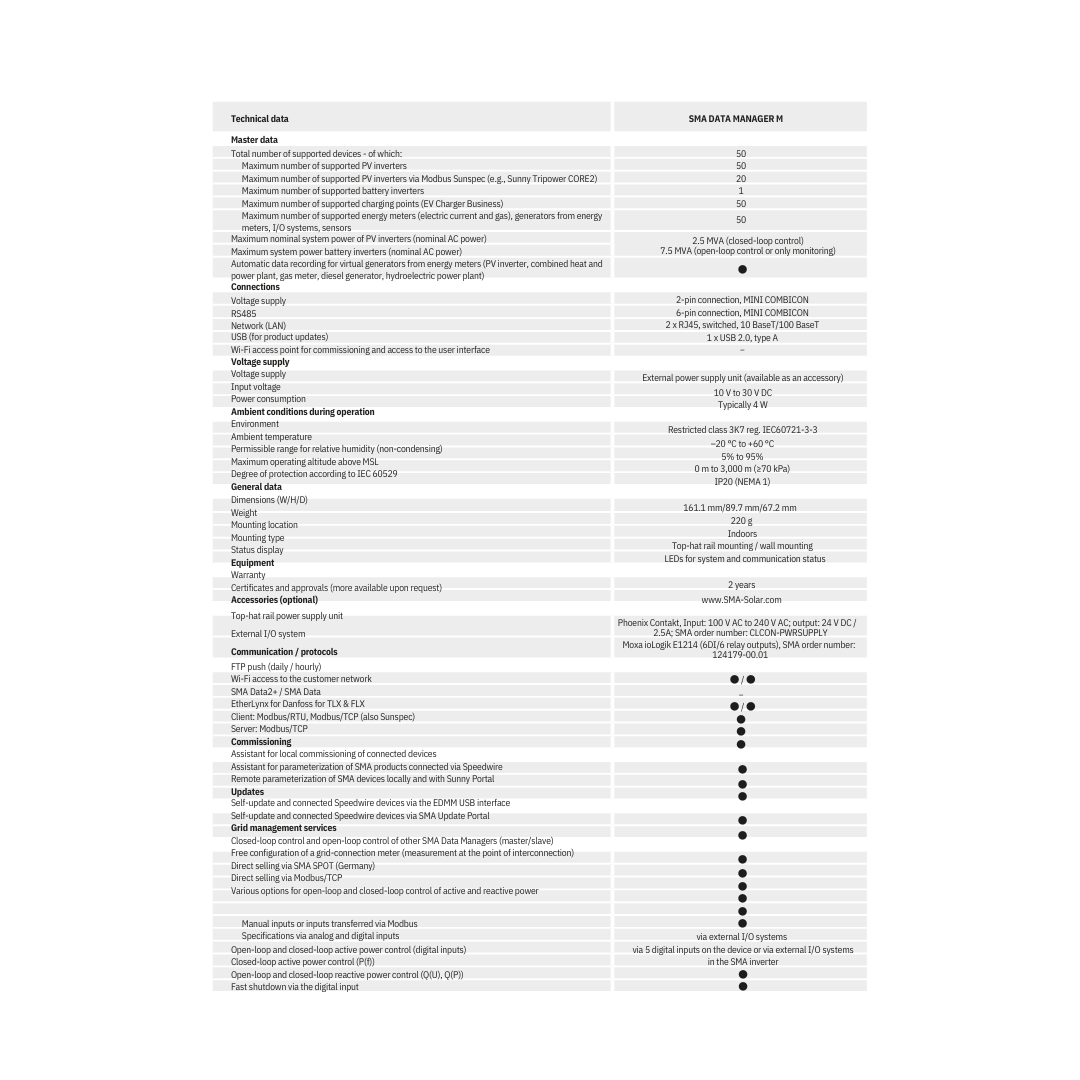

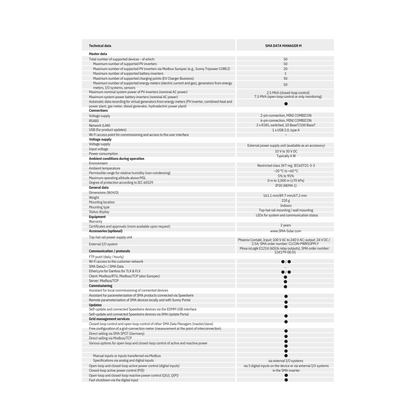

Technical Specifications

• Maximum number of supported PV inverters: 50
• Maximum number of supported PV inverters via Modbus Sunspec (e.g., Sunny Tripower CORE2): 20
• Maximum number of supported battery inverters: 1
• Maximum number of supported charging points (EV Charger Business): 50
• Maximum Allowed System Voltage: 1000 VDC
• Voltage supply: 2-pin connection, MINI COMBICON
• RS485: 6-pin connection, MINI COMBICON
• Network (LAN): 2 x RJ45, switched, 10 BaseT/100 BaseT
• Voltage supply: External power supply unit (available as an accessory
• Input voltage: 10 V to 30 V DC
• Power consumption: Typically 4 W
