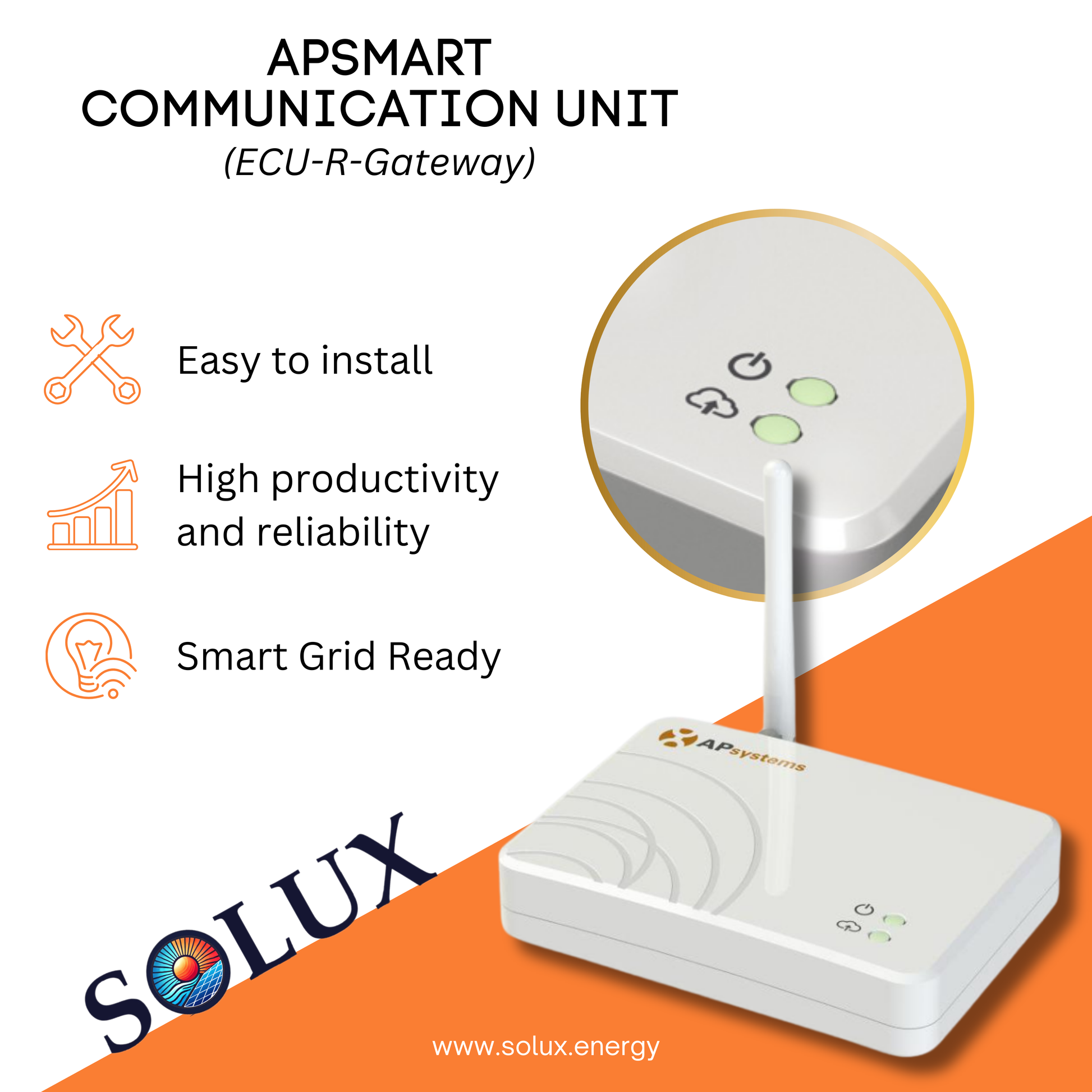

APSystems ECU-R-Gateway Standard ECU Zigbee Comm Wi-Fi No CTs No RGM

APSystems ECU-R-Gateway Standard ECU Zigbee Comm Wi-Fi No CTs No RGM

The APsystems Energy Communication Unit (ECU-R) is the information gateway for our microinverters. The ECU-R collects module performance data from each individual microinverter and transfers the information to an Internet database in real time. Through the APsystems Energy Monitoring and Analysis (EMA) software, the ECU-R gives you precise analysis of each micro-inverter and PV module in your solar installation powered by APsystems. The user-friendly interface gives you access to your solar array performance in seconds from our web based portal or from our APP.

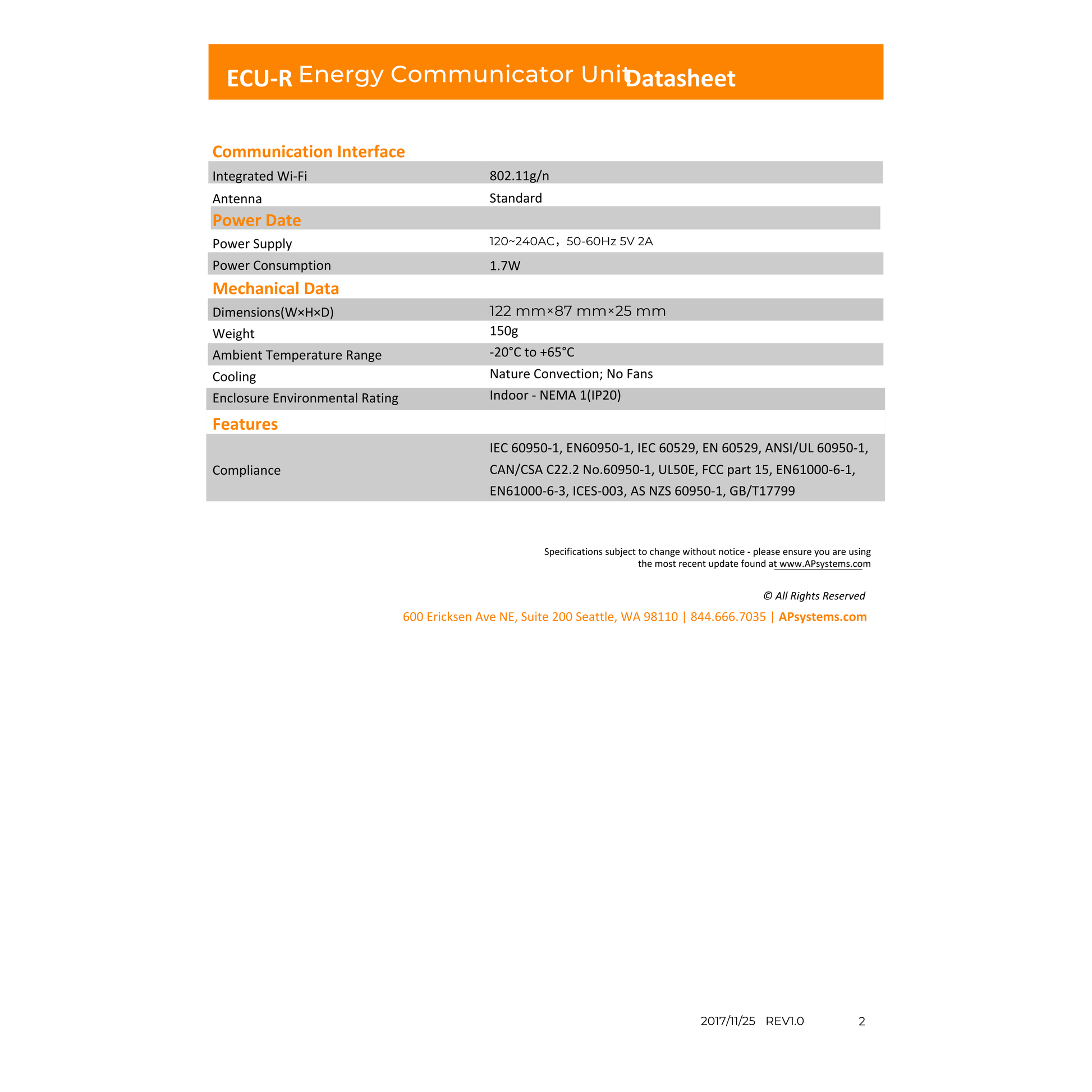

Technical Specification

• Communication ZigBee: 2.4 GHz
• Maximum Communicating Quantity: 100
• Ethernet: 10/100M Auto-sensing, Auto-negotiation
• Wireless: Wi-Fi 802.11g/n /GSM Cellular
• Wireless Security: WEP, WPA2-PSK
• USB Interface: 5Vdc - 0.5A Output
• Power Supply: 5V, 2A
• Power Consumption: 1.7 W
• Frequency Range: 2412MHZ-2472MHZ (WIFI), 2405mhz-2480mhz (ZigBee)
• RF Output Power (EIRP): 16.56 dbm (WIFI), 9.50 dbm (ZigBee)
• Type of Antenna: External antenna,SMA type connector
• Modulation: DSSS, OFDM
• Mode of Operation(Simplex/Duplex): Duplex
• Dimensions (W×H×D): 122 mm x 87 mm x 25 mm
• Weight: 0.33lbs (150g)
• Energy Management: -4°F to +149°F (-20°C to +65°C)
• Cooling: Nature Convection; No Fans
• Enclosure Environmental Rating: Indoor - NEMA 1 (IP20)
