Fortress eBoost eWay Lite AC/DC Wire Management Box

Fortress Power eWay Lite Wire Management Box

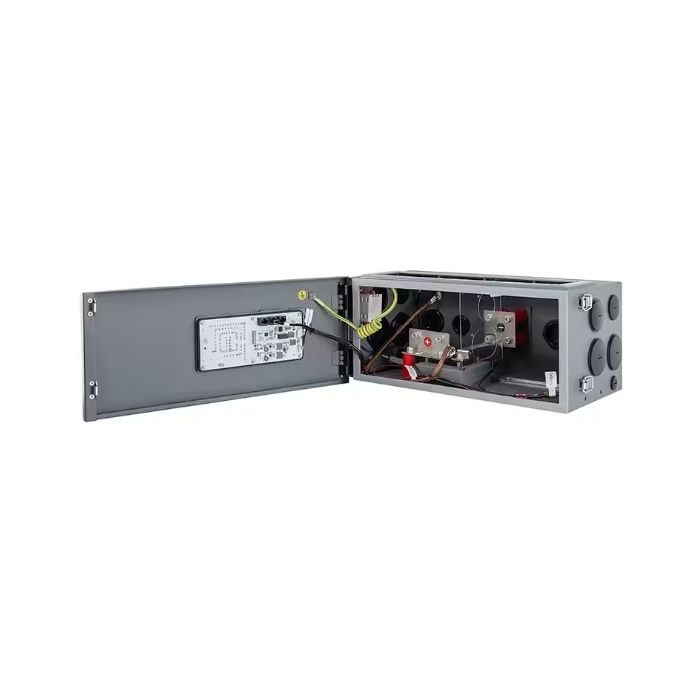

The Fortress eBoost eWay Lite AC/DC Wire Management Box is a floor-mounted wire box designed for AC and DC conductor management in Fortress Power eBoost 16 kWh energy storage system installations. Engineered specifically for single-battery and single-inverter configurations, it provides clean cable management when mounting a compatible Fortress Power Envy inverter side-by-side with the battery stack.

Equipped with a 250A battery terminal, this compact enclosure is cost-optimized without rear knockouts, status indicators, or Wi-Fi antenna ports. It includes an integrated manual power switch for safe system shutdown, supporting residential energy storage applications ranging from standalone whole-home backup to multi-battery system scaling up to 256 kWh and VPP participation.

• 250A Battery Terminal: Perfect for single-battery configurations.
• Compact, Cost-Optimized Design: No rear knockouts, no status indicator, and no Wi-Fi antenna port.
• Side-Mounted Inverter Support: Designed for installations where the Envy inverter is mounted beside the battery, not stacked on top.
• Power Switch Included: Provides safe system shutdown — however, RSD for battery cutoff is not integrated.
• Recommended for: Whole-home backup, multi-battery scaling (up to 256kWh), VPP participation, and any installation expecting growth.

Technical Specifications:

• Product: eBoost eWay Lite
• Product Type: AC & DC Wire Management Box Enclosure
• Application: eBoost 16 kWh energy-storage system
• Inverter Compatibility: Fortress Power Envy Inverter (Side-by-Side Mounting)
• Battery terminal: 250A
• Mounting Architecture: Floor Mount (1 Box per Battery Stack)
• Dimensions: approximately 22.84 × 9.52 × 10.18 in (580 × 241.9 × 258.5 mm)
• Mounting: Intended for side-by-side installation with the compatible Envy inverter
