Generac EB-PEK2-01 Ecobee Power Extender Kit

Generac Ecobee Power Extender Kit C-Wire Adapter

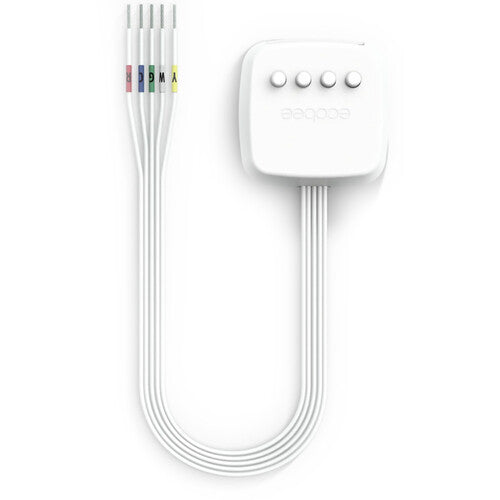

The Generac Ecobee Power Extender Kit is a compact wiring solution engineered for Smart Thermostat installations in homes lacking a dedicated common wire (C-wire). Designed to power 24 VAC ecobee thermostats directly from existing HVAC equipment wiring, this adapter eliminates the labor and expense of pulling new control cables through walls.

Operating on standard 18 to 30 VAC 50/60 Hz control circuits, the module safely delivers up to 2 A output current per terminal to maintain reliable power for smart thermostat displays and Wi-Fi radios. The indoor-rated unit features a wide operating temperature range (-40°F to 160°F), a compact footprint (2.44 in × 2.44 in × 0.90 in), and comes backed by a 3-year limited factory warranty.

Features and Benefits of Generac Power Extender

• Before adding to your cart, use the Thermostat Compatibility Checker to see if your install needs the Power Extender Kit. All models except Smart Thermostat Essential and Smart Thermostat Lite come with it.
• The Power Extender Kit comes with all Ecobee thermostats except Smart Thermostat Essential and Smart Thermostat Lite (but is compatible with those models, as well) and only works with 24 VAC systems. Millivolt, high-voltage systems, dual transformer and fan coil or communicating units are incompatible.

Technical Specifications:

• Manufacturer: Generac Power Systems
• Manufacturer Part Number: EB-PEK2-01

• Product Type: DC Disconnect / Breaker Lockout Kit
• Application: Smart thermostat installations without an existing C-wire
• Input Voltage: 18–30 VAC, 50/60 Hz
• Output Voltage: 18–30 VAC, 50/60 Hz
• Input Current: 30 mA @ 24 VAC
• Output Current: 2 A per terminal
• Operating Environment: Indoor use
• Operating Temperature: −40°F to 160°F (−40°C to 70°C)
• Product Weight: 1.0 lb
• Product Dimensions (L × W × D): 2.44 × 2.44 × 0.90 in (62 × 62 × 23 mm)

• Warranty: 3-year limited Manufacturer Warranty
