  • This is an image of APSmart Transmitter-PLC, Dual Core transmitter Outdoor Kit
  • Dual Core Transmitter plc communication
1 3

APsystems 408005 Transmitter PLC Single Core Outdoor Kit

$280.48 USD
$280.48 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

The APsmart Rapid Shutdown System Transmitter-PLC is part of a rapid shutdown solution whenpairedwithAPsmart RSD-S-PLC, a PV module rapid shutdown unit. While powered on, the Transmitter-PLCsends asignal tothe RSD-S-PLC units to keep their PV modules connected and supplying energy.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details
Manufacturer's logo

  • Description

    APsystems 408005 Transmitter PLC Single Core Outdoor Kit

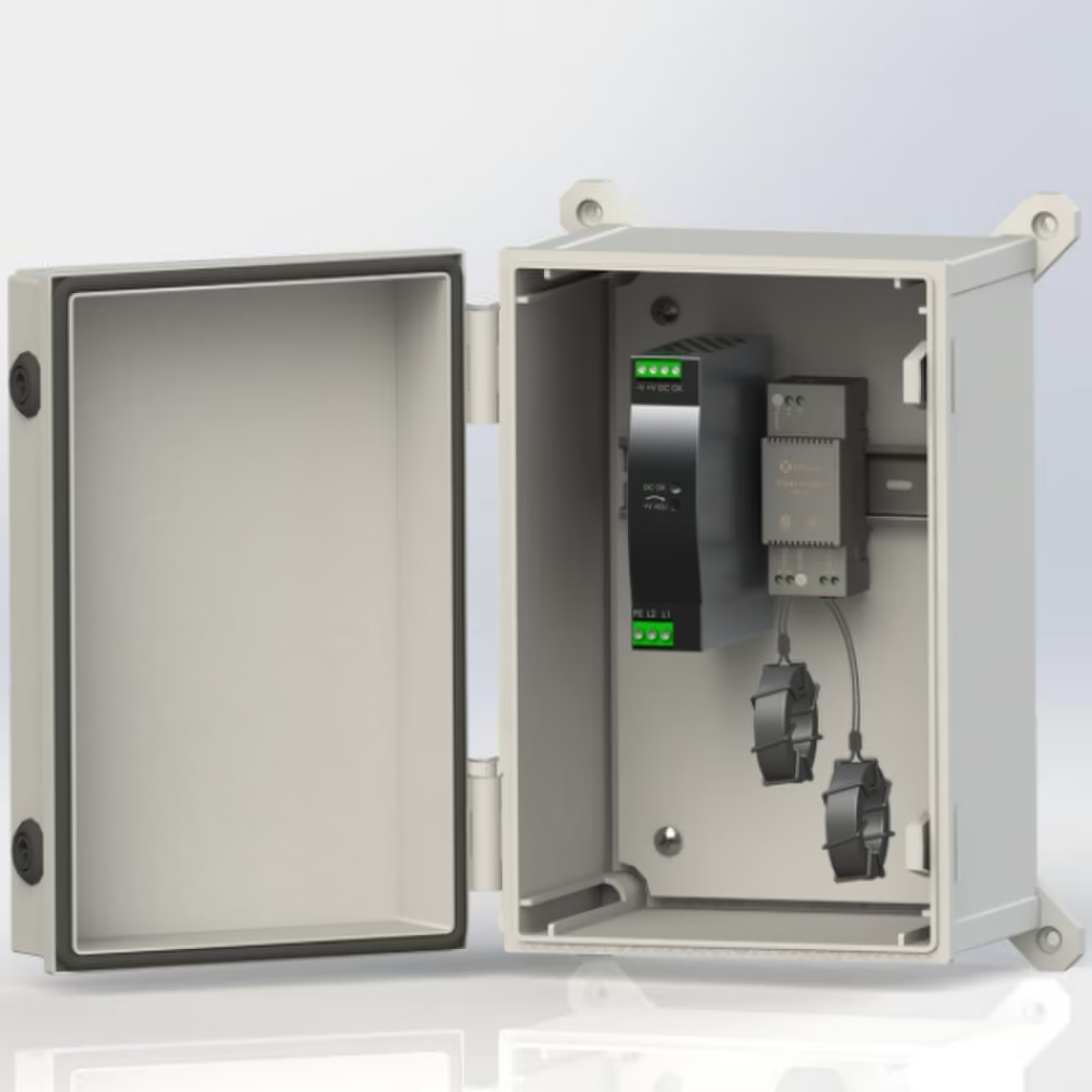

    APsmart 408005 is a Dual Core Transmitter-PLC Outdoor Kit used in commercial solar PV systems for rapid shutdown compliance. It is part of the APsmart rapid shutdown solution and works with APsmart RSD devices installed on solar modules.

    Technical Specifications

    • Input Voltage:12 VDC
    • Main electrical: 0.8A
    • Communication: PLC
    • Max. Current: 150A Per core
    • Max. System Voltag: 1500VDC
    • Internal Opening for Wires/Outside Dimensions: -29mm/65mm
    • Max. Supported PV Modules per String: 30 modules
    • Temperature: -40℃～+60℃
    • Dimensions (W x H x D): 198.5 mm x 298 mmx 179 mm
    • Enclosure Environmental Rating: IP65

  • Resources

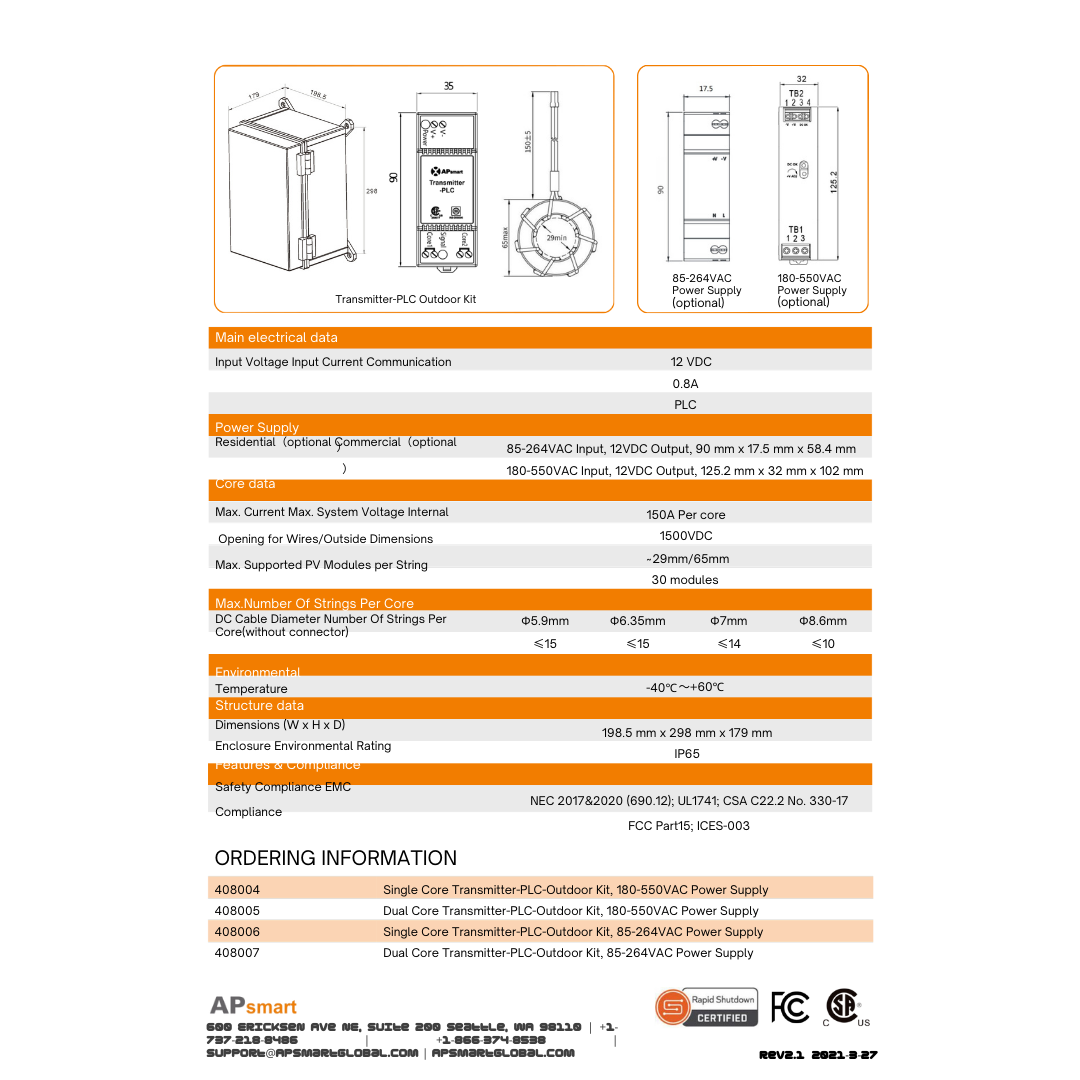

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    ✔️ Quick Installation Guide

    Warranty

    ✔️ Warranty

Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
