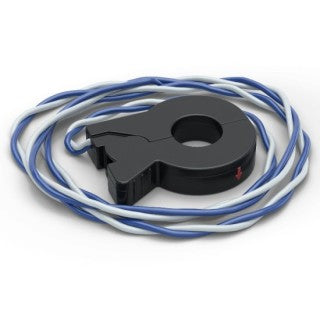

Enphase CT-200-CLAMP Consumption Clamp Current Transformer

Enphase Consumption Clamp Current Transformer

A clamp-style Current Transformer (CT) that can be used with IQ Combiner and IQ Gateway products, can be easily installed with one hand, and works well in crowded panels with complex wiring. The Consumption Clamp CT enables battery and home energy usage monitoring.

Technical Specifications:

• Includes 13 ft, 18 AWG wire
• Enables whole-home consumption metering with an accuracy of +/- 2.5%
• Residential use only
• Accuracy: -/+2.5%
• Max primary supported current: 200 A
• Dimensions: 2.75 in X 2.12 in X 0.61 in
• Aperture Diameter: 0.87 in
• UL2808 certified for use at the service entrance
