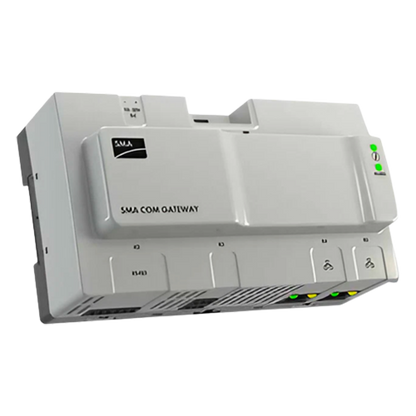

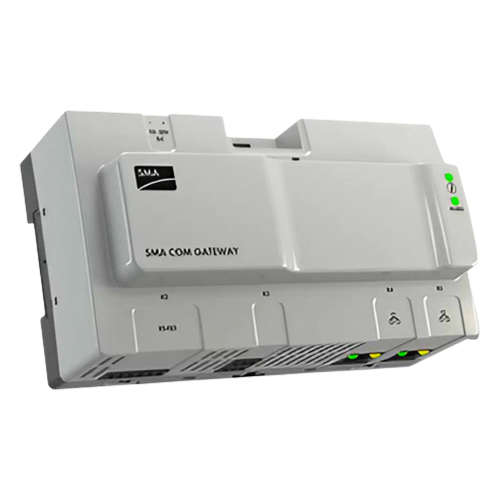

SMA COMGW-US-10 Communication Gateway For RS485 Systems

$284.72 USD
$284.72 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

The SMA Com Gateway is a simple way to integrate existing PV systems into modern plant control and monitoring solutions. When upgrading a system or replacing a data logger such as the Sunny WebBox, the SMA Com Gateway enables the use of the SMA Cluster Controller. Easy integration into the SMA Speedwire data communication supports the incorporation into existing and future communication, system monitoring and control solutions (e.g. commercial energy management systems or the SMA Smart Home), thereby guaranteeing the security of investment for the PV system.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    SMA COMGW-US-10 Communication Gateway For RS485 Systems

    Simple - Integration into existing RS485 systems
    Flexible - Top-hat rail or wall mounting and supports up to 50 x RS485 devices
    Future Proof - Investment security for existing systems

    Technical Specifications

    • RS485 Devices: RS485, max. 50 devices, 1200 baud or 19200 baud
    • SMA Data Logger: Speedwire, 10/100 Mbit/s
    • Voltage Supply: 2-pole connection, MINI COMBICON
    • RS485: 6-pole connection, MINI COMBICON
    • SMA Data Logger / Network (LAN): 2 x RJ45, switched, 10BASE-T/100BASE-T
    • USB: 1 x USB 2.0, type A
    • Dimensions (W x H x D): 161.1 x 89.7 x 67.2 mm / 6.36 x 3.53 x 2.65 in
    • Weight: 0.2 kg / 0.4 lbs
    • Mounting Location: Indoors
    • Mounting Type: Top-hat rail mounting / wall mounting
    • Status Display: LEDs for system, RS485 and Ethernet status

  • Downloads

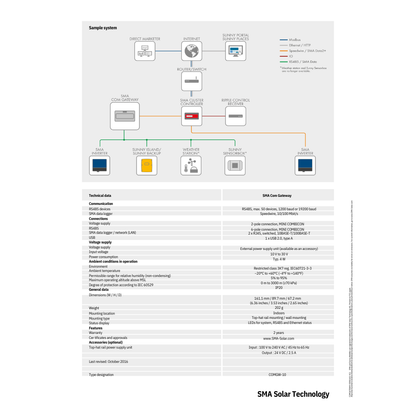

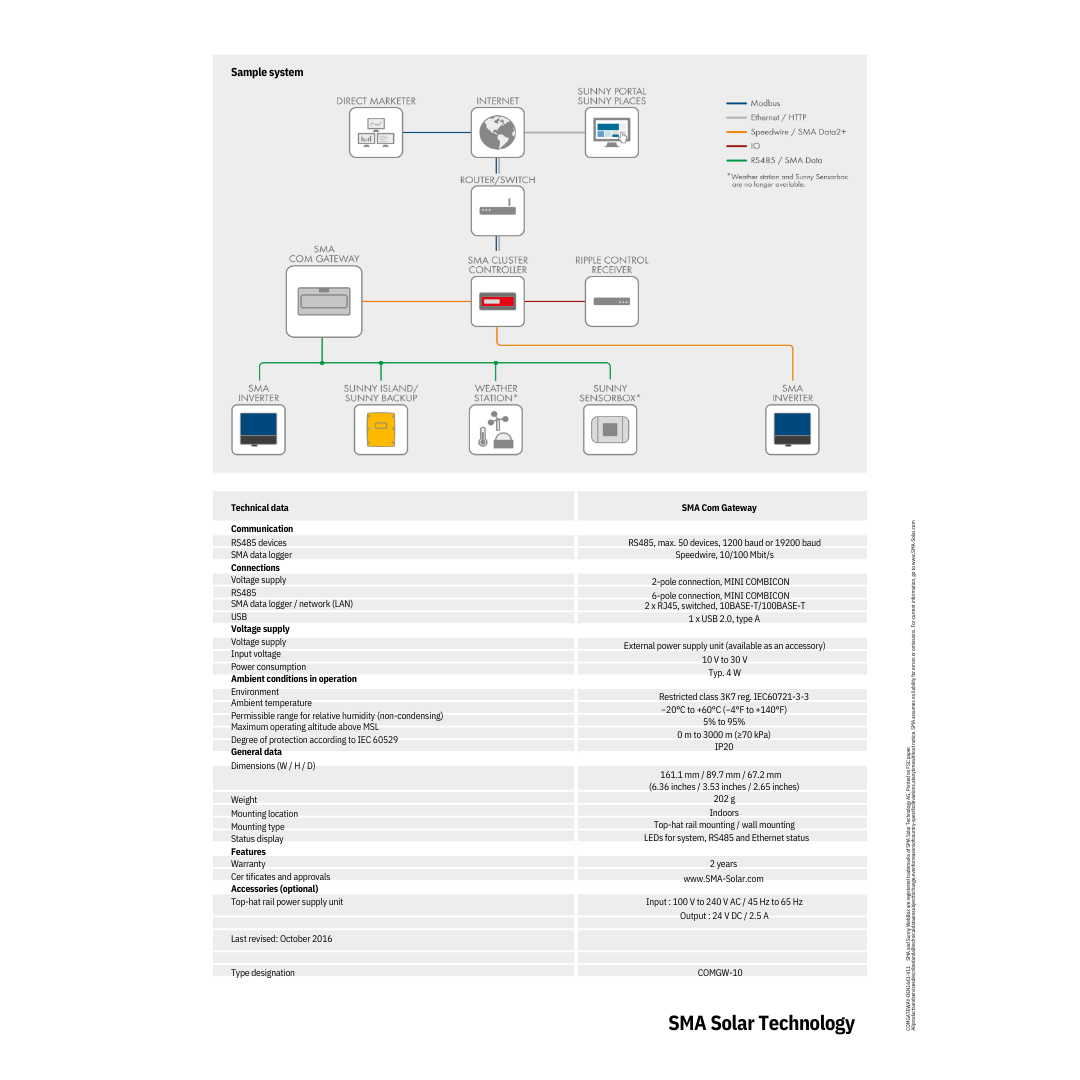

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.

    Warranty

    2 Years Warranty


Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
