Description

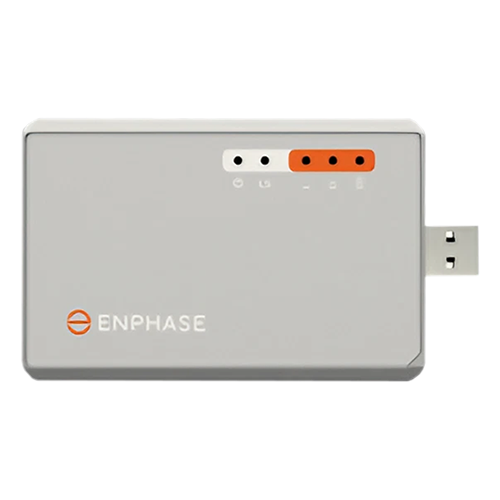

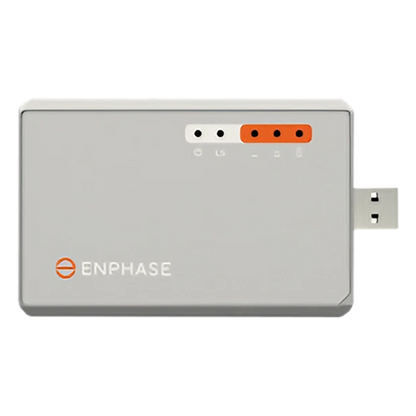

Enphase CELLMODEM-M1-06-AT-05 Mobile Connect Cellular Modem and Data Plan
The Enphase Mobile Connect Cellular Modem delivers easy, reliable networking for Enphase Energy Systems with multiple carrier options.
- Enables web-based monitoring and control
- Designed for indoor or outdoor 1 installation
- Multiple network options to choose from for the best coverage for the location
Technical Benefits:
- Performance: LTE CAT M1,EGPRS
- Packet data3: Cat M1: Max. 375Kbps (DL) / 375Kbps(UL) SMS Text and PDU mode, point to point MO and M
- Voltage: USB Powered - 5V
- SIM: Micro SIM (3FF); 1.8V
- USB: Type A USB
- Dimensions (L x W x H): 91 mm x 60 mm x 15 mm
- Weight: 100 grams (approximate)
- Chassis type: Plastic
- Operating temperature: -40°C to +65°C
- Storage temperature: -40°C to +65°C
- Humidity: Relative humidity 15% to 93%
- Environmental rating: If installed outdoors, install Enphase Mobile Connect cell modem in NEMA 3R or IP54 rated enclosure.
-
Downloads

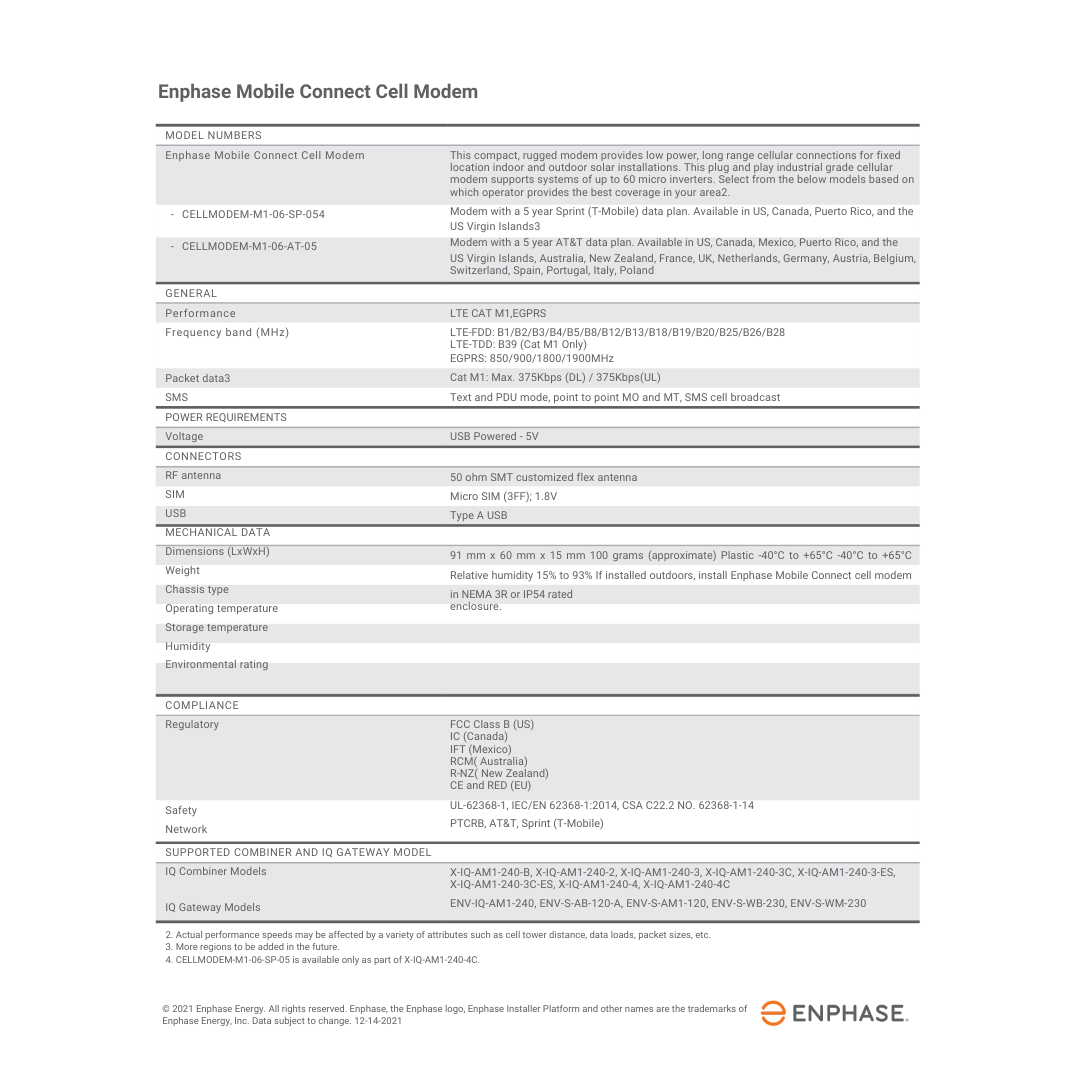

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
5 Years Warranty
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
