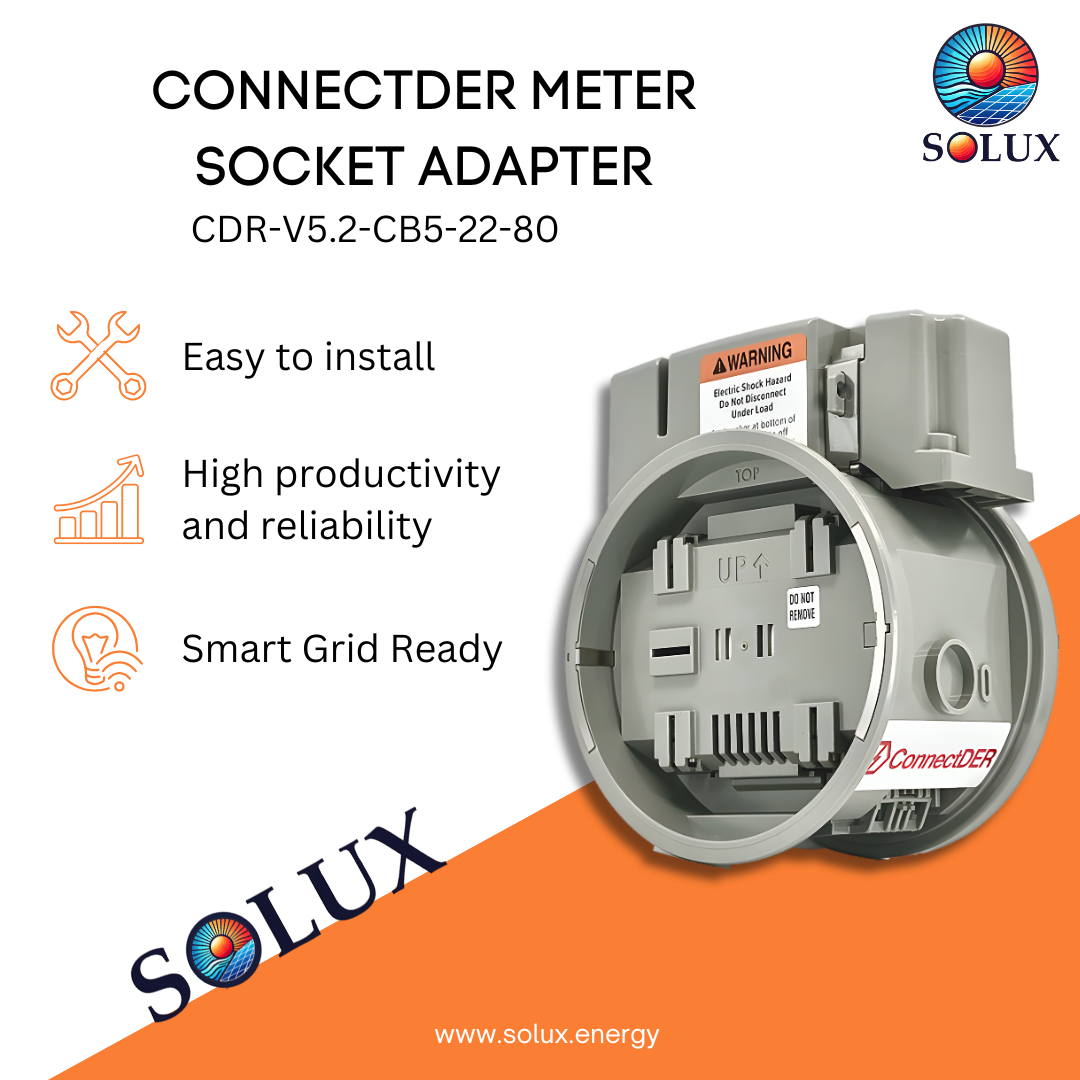

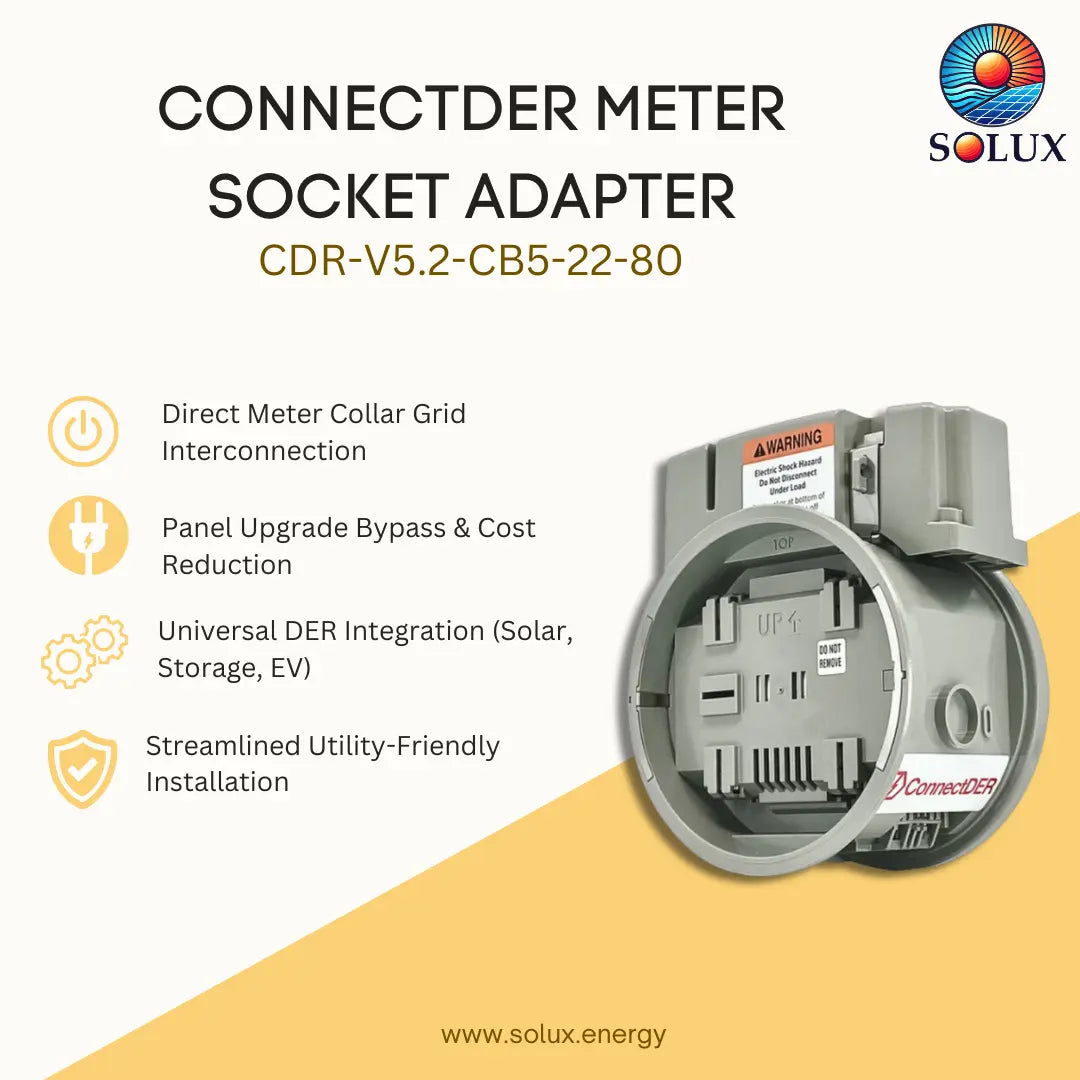

ConnectDER Meter Socket Adapter (MSA) 80

ConnectDER Meter Socket Adapter (MSA) 80

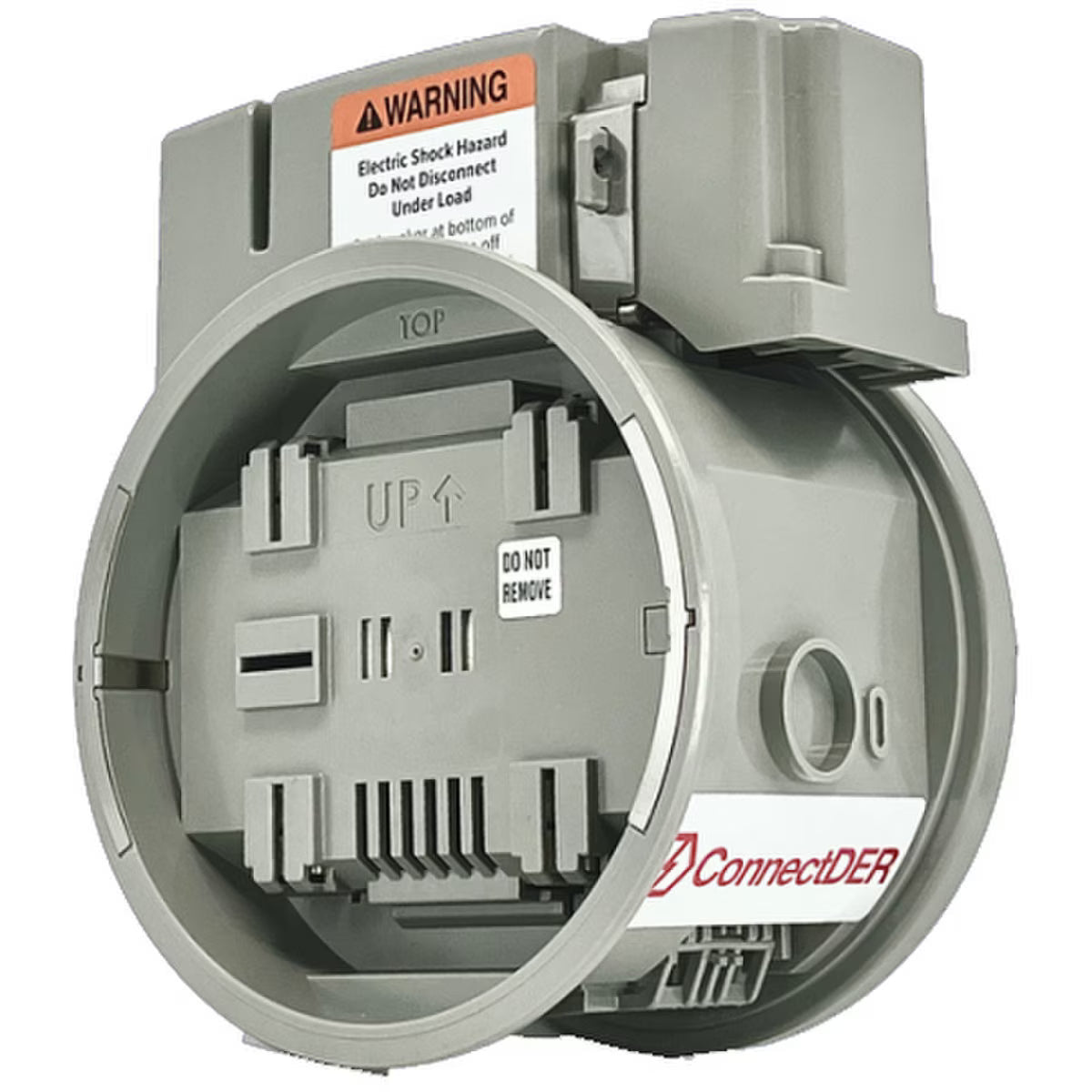

The ConnectDER CDR-V5.2-CB5-22-80 is a model from ConnectDER’s line of innovative meter collar adapters designed to simplify the integration of Distributed Energy Resources (DERs) — such as solar PV systems — into the electric grid. This version (V5.2) offers enhanced compatibility and performance, allowing for quick, code-compliant connections at the residential electric meter socket without the need for panel upgrades or invasive rewiring. Ideal for streamlined solar installations, it supports safer and faster deployment while reducing installation time and costs.

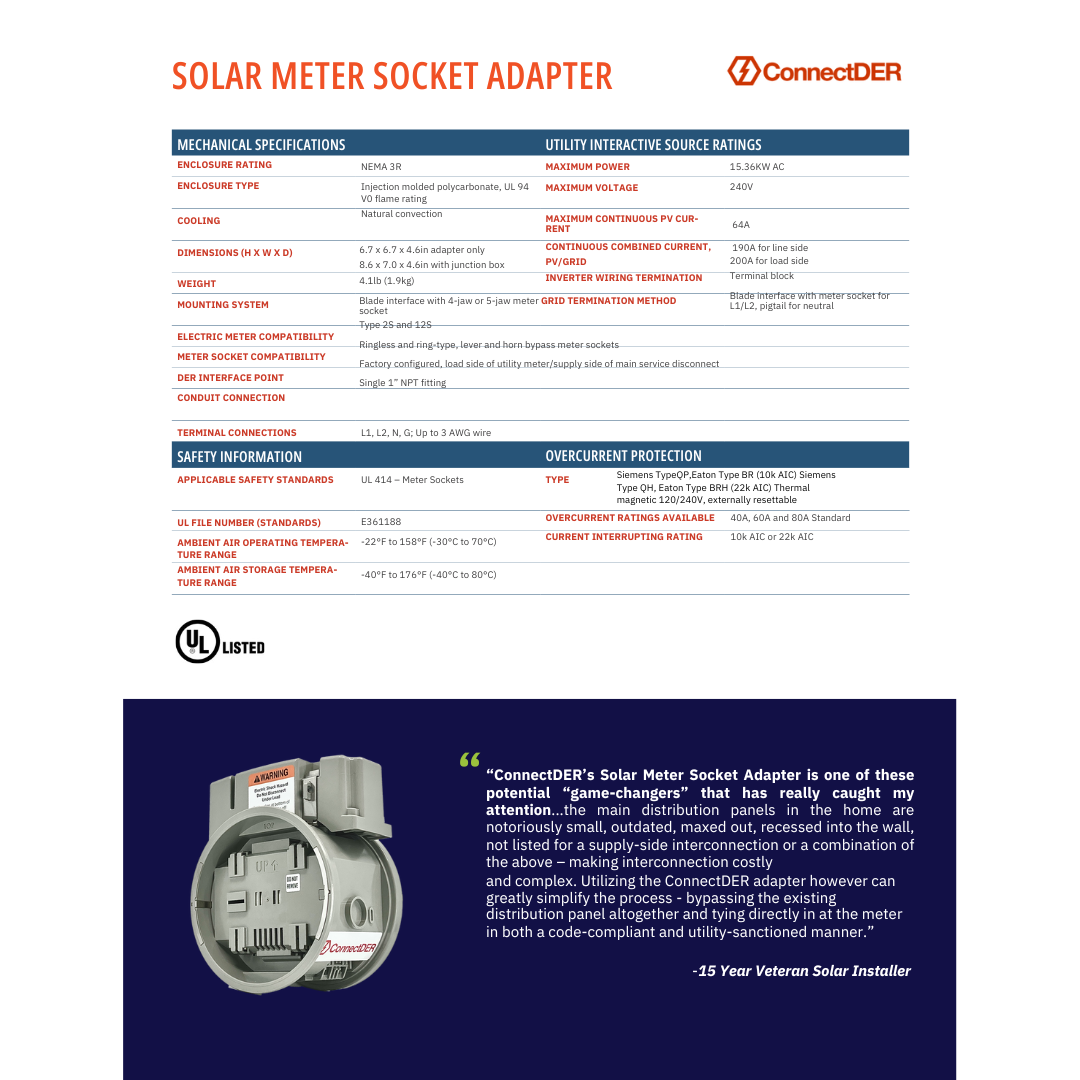

• Product / Model: ConnectDER CDR‑V5.2‑CB5‑22‑80 (Meter Socket Adapter, MSA)
• Voltage Rating: 240 V AC
• Maximum Current: 80 A
• Fault Current Rating (AIC): 22,000 A (22 kA)
• Enclosure / Housing: NEMA 3R rated
• Dimensions: As adapter alone: ~ 6.7″ × 6.7″ × 4.6″. With junction (or distribution) box: ~ 8.6″ × 7.0″ × 4.6″
• Operating Temperature Range: –30 °C to +70 °C (–22 °F to +158 °F)
• Storage Temperature: –40 °C to +80 °C
• Standards & Approvals: UL 414 (Meter Socket standard)
• Wire / Termination: Terminals L1, L2, N, G. Supports up to 3 AWG wire sizes.
• Maximum PV / DER Current: Continuous PV current rating ≈ 64 A (behind the scenes)
• Combined Current (PV + Grid): On line side: ~190 A; on load side: ~200 A (as per some spec references)
