Description

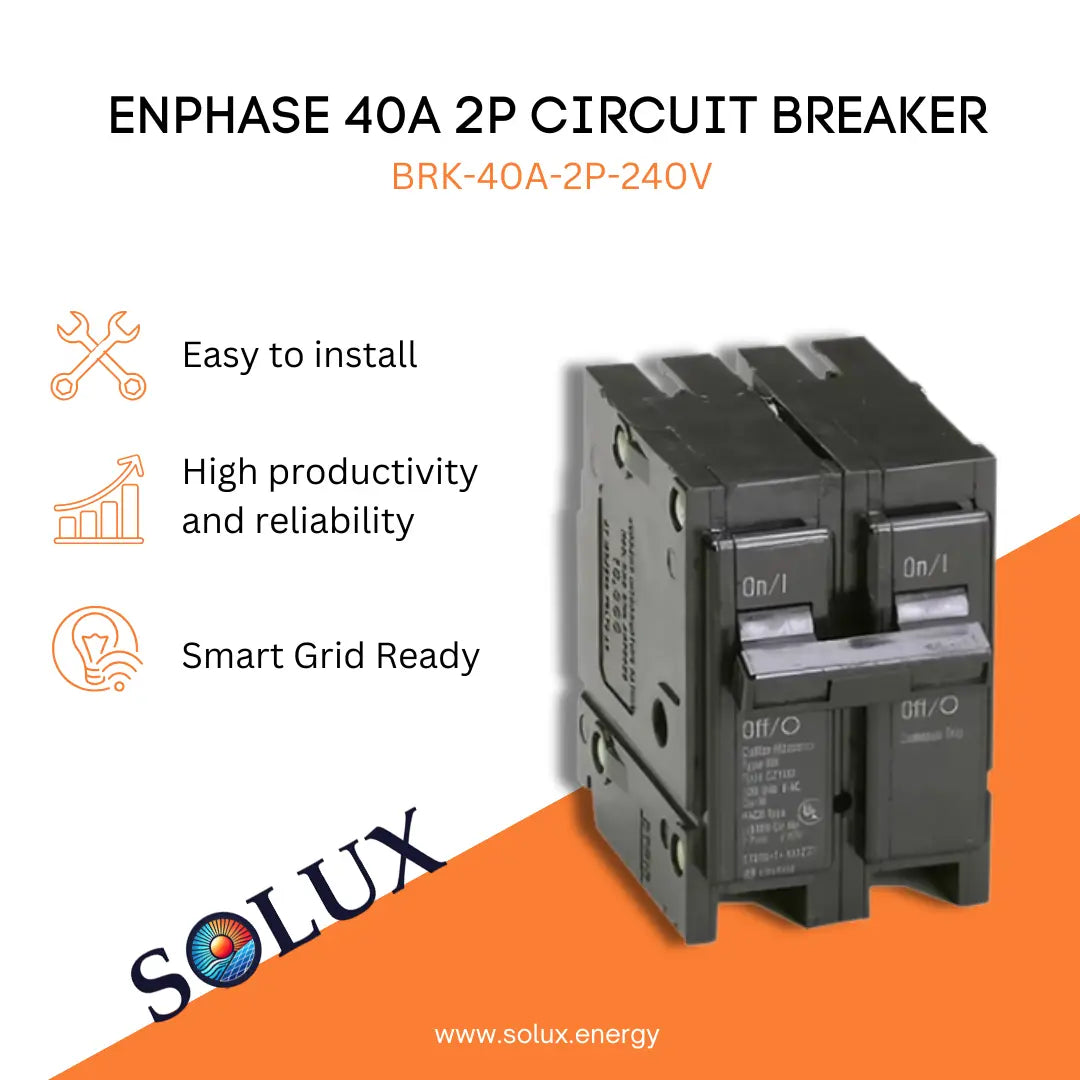

Enphase BRK-40A-2P-240V 40A 2P Circuit Breaker
The BRK-40A-2P-240V is a 2-pole, 40-amp circuit breaker commonly used in solar and residential electrical systems, especially with Enphase Energy equipment (e.g., Enpower / IQ combiner systems).
- “2P (2-pole)” means it simultaneously disconnects both phases of a 240V circuit.
- “40A” is the maximum continuous current rating.
- Designed for branch circuit protection, not as a main breaker.
Technical Specifications:
- Rated Current: 40 Amps
- Voltage Rating: 120/240 VAC (split-phase)
- Poles: 2-pole (controls two hot lines simultaneously)
- Interrupt Rating: ~10 kAIC
- Type: Thermal-magnetic circuit breaker (standard protection type)
- Mounting: Plug-in style (commonly BR-type panels)
- Certification: UL listed
- Weight: ~0.9 lb (≈0.4 kg)
-
