Generac APKE00006 600A Current Transformer (CLEARANCE)

Generac 600A Current Transformer Kit

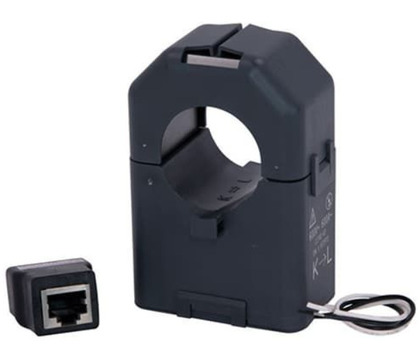

The Generac APKE00006 600A Current Transformer Kit is an optional current-sensing accessory engineered for Generac PWRcell solar and energy storage systems. Designed for applications requiring larger electrical conductors, this smart current transformer (CT) features a 600 amp current rating and an expanded physical opening to measure utility service line power flow accurately.

This kit functions as a direct upgrade replacing standard 200A CTs when monitoring higher-amperage residential or commercial service entrances. Operating on 110 to 240 VAC systems at 50/60 Hz, the kit includes one 600A smart current transformer and the necessary wiring adapter for seamless integration with PWRcell inverter systems.

Technical Specifications:

• Brand / Manufacturer: Generac Power Systems
• Manufacturer Part Number: APKE00006

• Amps: 600

• Application: PWRcell solar + energy storage / energy monitoring systems
• Function: Measures electrical current in service conductors for energy monitoring
• CT Type: Smart Current Transformer
• Frequency: 50/60 Hz
• Input/Service Voltage: 110–240 VAC
