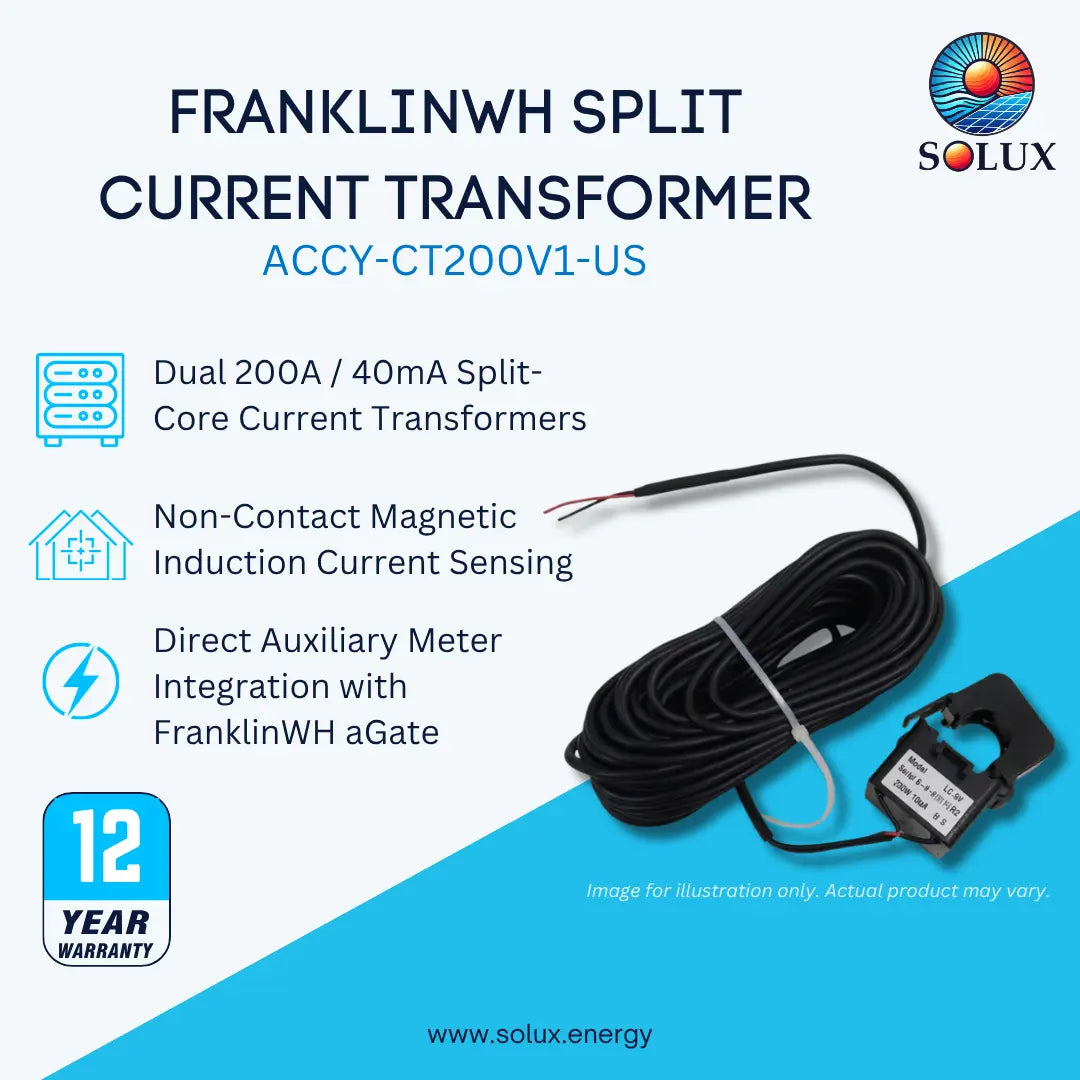

  • Solux FranklinWH split current transformer ACCY-CT200V1-US, featuring a coiled black cable and a small black current transformer clamp with a white label, set against a white and blue graphic background with product features and a 12-year warranty badge.
  • Solux logo on a white background with orange and yellow curved graphic elements and a blurred American flag in the background. The Solux logo features a circular sun and wave design in blue, orange, and yellow, with the word 'SOLUX' underneath.
1 2

FranklinWH ACCY-CT200V1-US aGate Split Current Transformer Aux Connector

$72.79 USD
$72.79 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ 200A Current Measurement – Designed to monitor electrical circuits carrying up to 200 amps.
✔️ 40mA CT Output – Converts measured current into a low-level 40mA output signal for compatible metering equipment.
✔️ Split-Core Design – Allows the CT to be installed around an existing conductor without disconnecting the electrical wiring.
✔️ Non-Contact Measurement – Provides current sensing without making a direct electrical connection to the monitored circuit.
✔️ ±3% Accuracy – Provides reliable current measurement for energy monitoring applications.
✔️ 24 mm Clamp Opening – Accommodates conductors within the CT's specified opening size.
✔️ 15 m (50 ft) Cable – Provides flexibility for connecting the CTs to the monitoring equipment.
✔️ Two CTs Included – Supplied as a pair for monitoring two conductors/circuits.
✔️ Splitter Terminal Block Included – Facilitates connection of the CTs to the compatible FranklinWH metering system.
✔️ Designed for FranklinWH aGate – Used as an auxiliary current-monitoring accessory with the built-in aGate meter.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Franklin

  • Description

    FranklinWH 200A Split-Core Current Transformer Kit

    The FranklinWH ACCY-CT200V1-US Split Current Transformer Kit is an auxiliary current-monitoring accessory engineered for seamless integration with the FranklinWH aGate built-in meter. Designed for residential energy management, this kit measures power flow on secondary sub-panels and dedicated electrical loads that fall outside the main internal CT monitoring zone.

    The kit features two 200A/40mA split-core current transformers that utilize non-contact magnetic induction to safely measure electrical current with ±3% accuracy. Package contents include a dedicated splitter terminal block and 15 meters (50 feet) of twisted-pair wiring, enabling straightforward installation and reliable telemetry back to the Franklin Home Power energy control system.

    Technical Specifications:

    • Manufacturer: FranklinWH
    • Manufacturer Part Number: ACCY-CT200V1-US
    • Product Type: Split Current Transformer (CT) Kit
    • Application: Auxiliary connection to the built-in aGate meter
    • Current Rating: 200 A
    • Output Current: 40 mA
    • Metering Accuracy: ±3%
    • Clamp Opening Diameter: 0.94 ± 0.02 in (24 ± 0.5 mm)
    • CT Type: Split-core / non-contact current transformer
    • Lead Cable: Twisted-pair, black & white
    • Cable Length: 50 ft (15 m)
    • Operating Temperature: -40°F to 185°F (-40°C to 85°C)
    • Ingress Protection: IP30 / NEMA 1
    • Splitter Terminal Block: 1 included
    • Included Wiring: 15 m
    • Connection: Auxiliary metering connection to FranklinWH aGate
    • Sensing Method: Magnetic-induced current / non-contact measurement
    • CT Weight: Approx. 0.66 lb (300 g)
