  • AC-SPD-KIT2-T1T2 type 1 surge protective device
1 3

SMA AC-SPD-KIT2-T1T2 AC Surge Protection For Sunny Tripower CORE1

$70.69 USD
$70.69 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Voltage: 230/400 V AC
✔️ Features: Type 1 + Type 2 AC surge protection
✔️Protects the AC output of compatible SMA Sunny Tripower CORE1 inverters
✔️Product Type: AC Surge Protection Kit
✔️Protection Class: Type 1 + Type 2 / Class I + II
✔️Protected Connections: L1 / L2 / L3 / N
✔️Total Discharge Current: 50 kA (8/20 µs)
✔️ Warranty: 5 years
It provides combined Type 1 + Type 2 surge protection on the inverter's AC side, helping protect against transient overvoltages caused by direct or indirect lightning and grid switching events. The kit contains four modules for L1, L2, L3, and N.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    SMA AC Surge Protection Kit - Type 1/2 (AC-SPD-KIT2-T1T2)

    The SMA AC_SPD_KIT2_T1T2 Surge Protection Kit is a high-capacity Type 1/2 AC surge protective device (SPD) engineered specifically for the SMA Sunny Tripower CORE1-US inverter series. It provides advanced protection for the inverter's internal power electronics against severe transient overvoltages, utility grid switching spikes, and direct or indirect lightning strike surges.

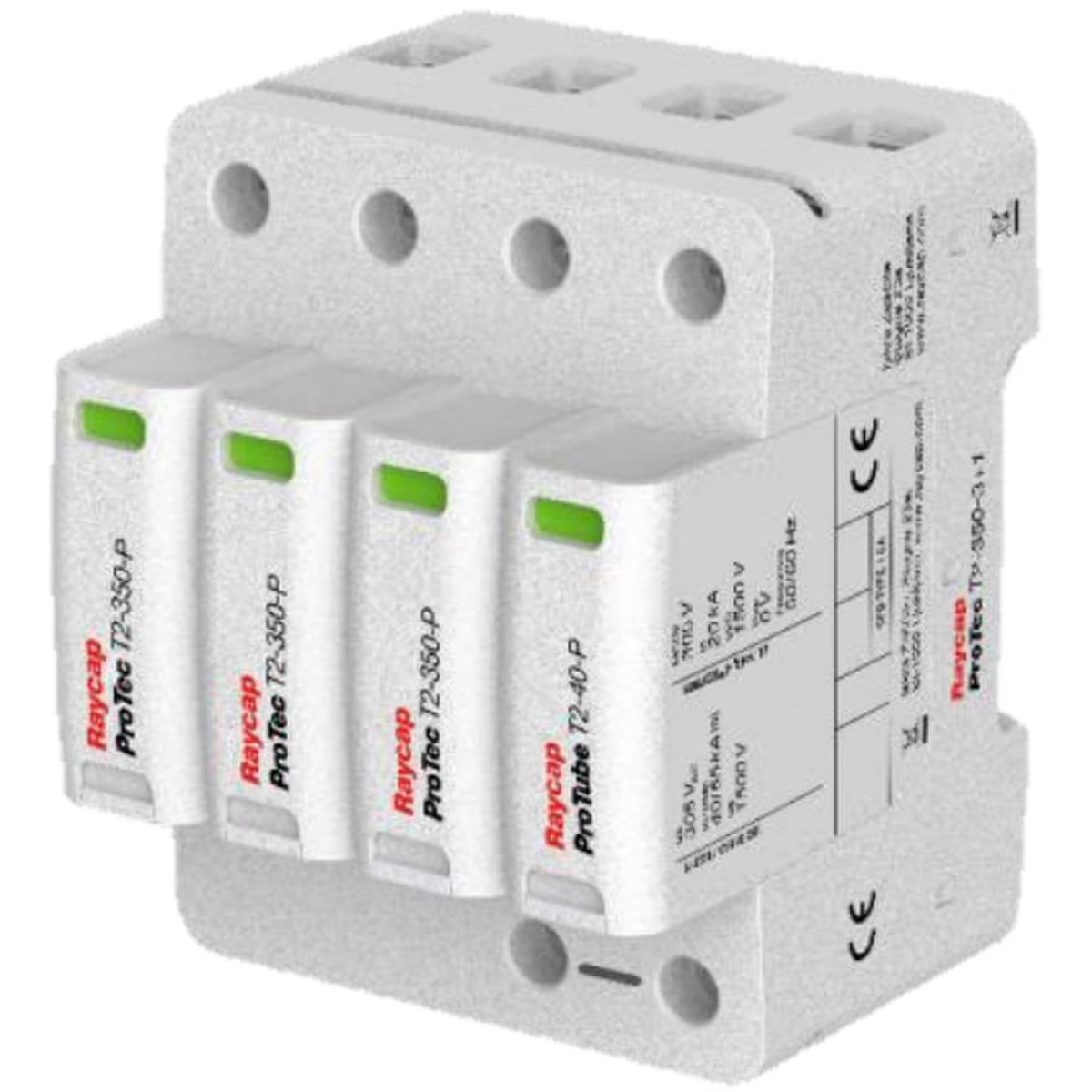

    This field-installable kit comes packaged with four single-pole protection modules (L1, L2, L3, and Neutral) designed for direct plug-in installation into the dedicated AC SPD slot within the CORE1-US enclosure.

    Technical Specifications

    • Manufacturer Part Number: AC_SPD_KIT2_T1T2
    • Shipping Weight: 1 lb
    • Shipping Dimensions: 2 x 3 x 4 in
    • Maximum Continuous Operating DC Voltage: 1100V
    • Nominal Discharge Current (8/20 µs): 20kA
    • Total Discharge Current (8/20 µs): 50kA
    • Voltage Protection Level: 4400V
    • Response Time: < 25ns
    • Short-Circuit Current Rating: 11kA

  • Resources

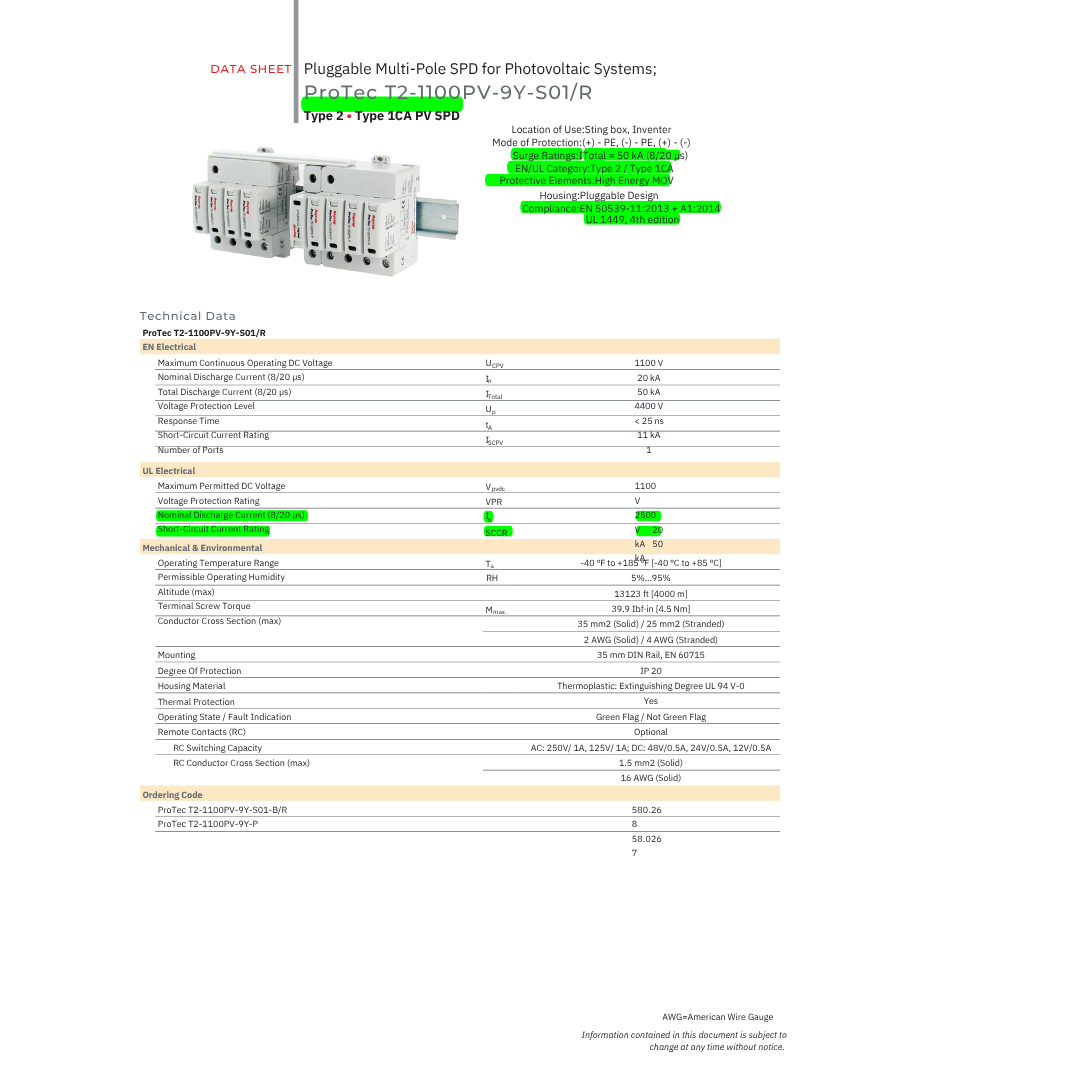

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.


Download Spec Sheet Of SMA AC Surge Protection For Sunny Tripower Core 1
