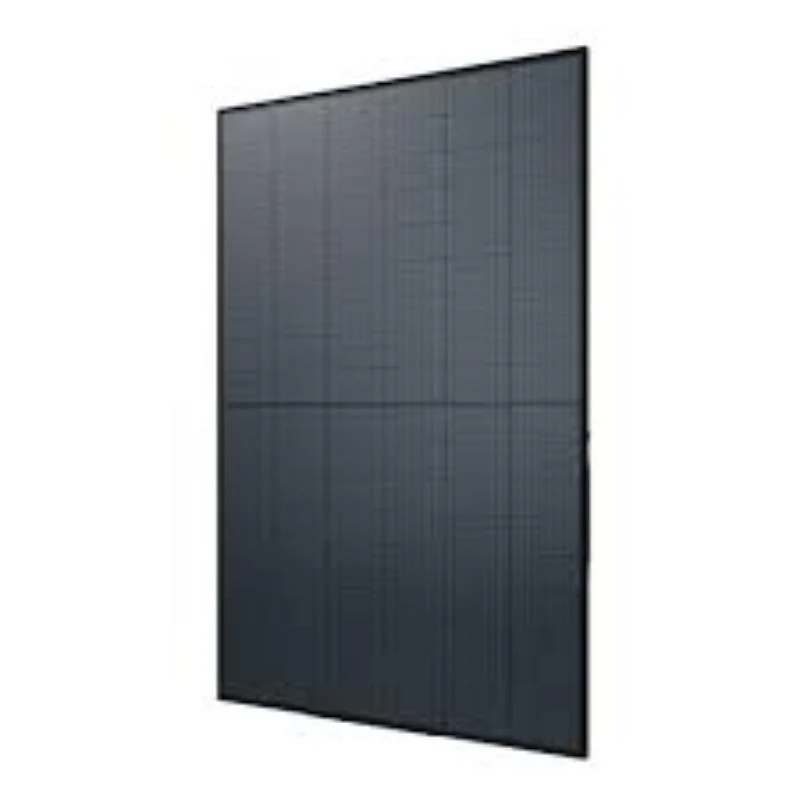

Axitec 410Watt 108 Half-Cell Bifacial Solar Panel

Axitec 410W AC-410MBT All Black 108 Mono Cell Solar Panel

• High Efficiency 410W nominal output with 21.00% module efficiency.
• Half-cut technology reduces resistive losses, improving performance
• Enhanced Durability hardened, low-reflection glass and a composite backsheet for long-term stability.
• Pressure resistance: 113 PSF (pressure) and 50 PSF (suction).
• Sleek all-black frame and cells for an elegant appearance.
• Positive power tolerance of 0-5W.

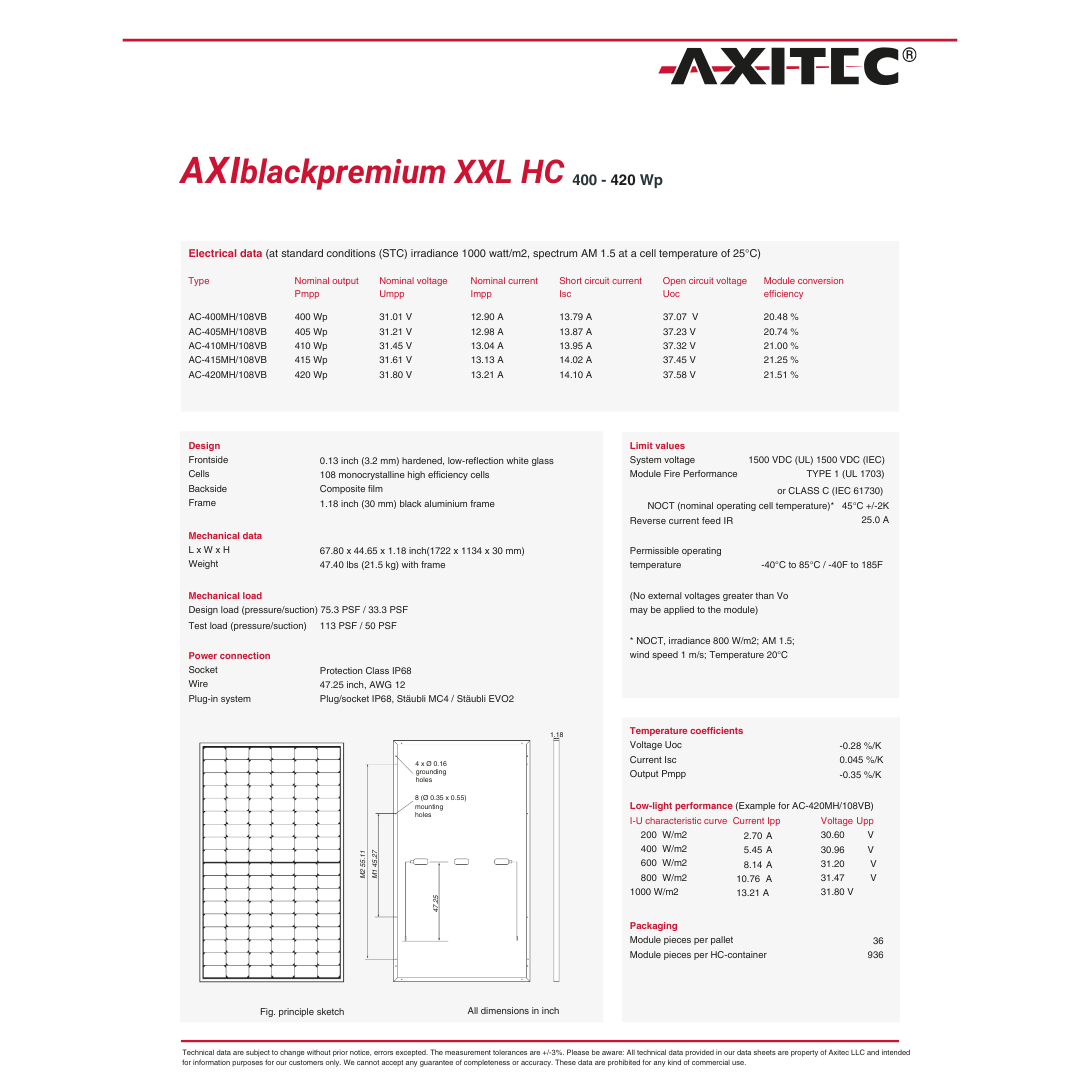

• Product Performance

  Rated Power


  Efficiency


  Open Circuit Voltage (Voc)


  Short Circuit Current (Isc


  Voltage at Maximum Power (Vmpp)


  Current at Maximum Power (Impp)


  Maximum System Voltage


  Temperature Coefficient


  410W


  21%


  37.32V


  13.95A


  31.45V


  13.04A


  1500 VDC (UL/IEC)


  Pmpp: -0.35%/K, Voc: -0.28%/K, Isc: +0.045%/K








  Power (measured in watts) and efficiency (how well panels convert sunlight to electricity) are some of the most common metrics used to compare solar panel products. While they are not the only means of comparison, they are important determinants in how much electricity you can produce with a solar panel system. Metrics like power tolerance and temperature coefficient are also important ways to analyze the potential performance of solar panels under the different conditions they will experience over their lifetime. Learn how panels from different manufacturers stack up against one another in our updated article about the best solar panels on the market.

• Warranty Information

  ✔️Product Warranty Term: 15 years
  ✔️ Output Guarantee Term: 25 years

  Solar panels generally come with an output warranty covering the energy production of the panel, and a materials warranty protecting you against undue wear and tear on your equipment. Learn more about solar panel warranties.

• Physical Characteristics

  ✔️ Cell Type: 108 Monocrystalline Half-Cut Cells
  ✔️ Panel Dimensions: 67.80 x 44.65 x 1.18 in.
  ✔️ Cell Count: 108
  ✔️ Connector Type: Stäubli MC4 / EVO2, IP68 rated
  ✔️ Frame: Black anodized aluminum

  The physical characteristics of a solar panel have an impact on the product's performance. For example, metrics like efficiency and wattage are based on the type, size, and number of solar cells used in a panel.

• Certifications

  ✔️ Certifications Received: None

  Organizations like the International Electrotechnical Commission (IEC) and Underwriters Laboratories (UL) create national and international standards for photovoltaic solar panels to ensure any products on the market meet certain specifications for safety and reliability reasons.
