Tigo Energy Meter 605-00200-00 200A Meter, 2CTs

$305.75 USD
$305.75 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

The Energy meter is required in battery storage installations to provide critical usage data to the inverter. This is used to determine if and when the batteries should be supporting the building's energy needs.
All orders are subject to product availability. We verify stock before processing and will notify customers if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    Tigo Energy 605-00200-00 Energy Meter

    Supports the EI Energy Storage Solution operating modes
    Attached connectors allow the CTs to simply plug into the meter terminals
    Meter data displayed in the EI monitoring platform upon activation, no configuration needed

    Technical Specifications

    • Dimensions: (W x D x H) 54.1 x 52 x 87.8mm / (2.1 x 2.0 x 3.5in)
    • Weight: 0.2kg (0.44lbs)
    • Nominal Voltage: 240/208V
    • Voltage Range: 88%-110%
    • Nominal Current: 200A
    • Nominal Frequency: 60Hz
    • Voltage Input Type: 1P2W,2P3W
    • Serial Reporting Interval: <1s
    • Accuracy Class: ANSI C12.20 1.0 (meets 1% accuracy)
    • Operational Temperature Range: -22°F~131°F (-30°C ~55°C)
    • Relative Humidity: 5~95% Non-condensing
    • Accessories: 2 pcs 200A Rated CT
    • Communication: RS485

  • Downloads

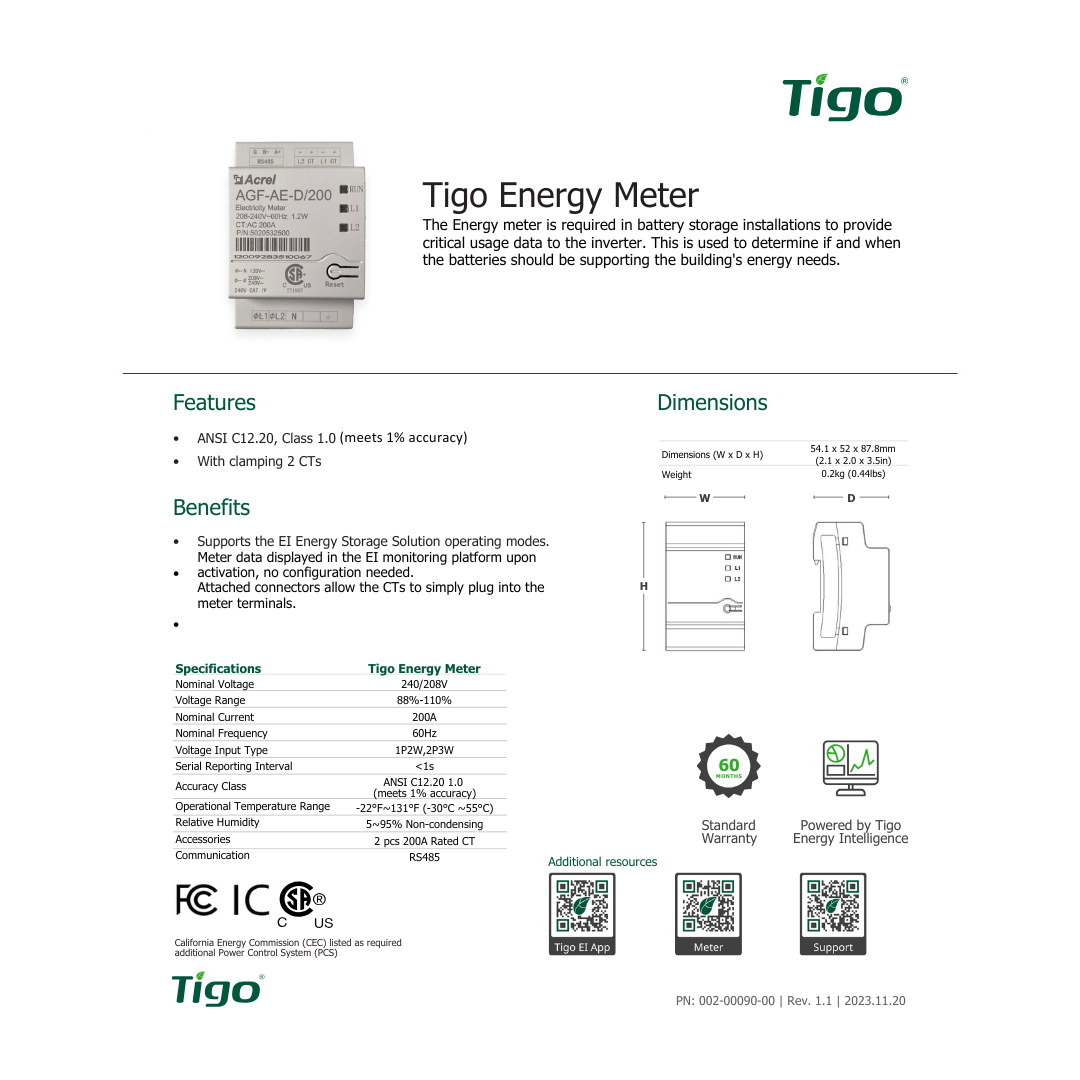

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No installation guide available. Email support@solux.energy for file request.

Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
