Description

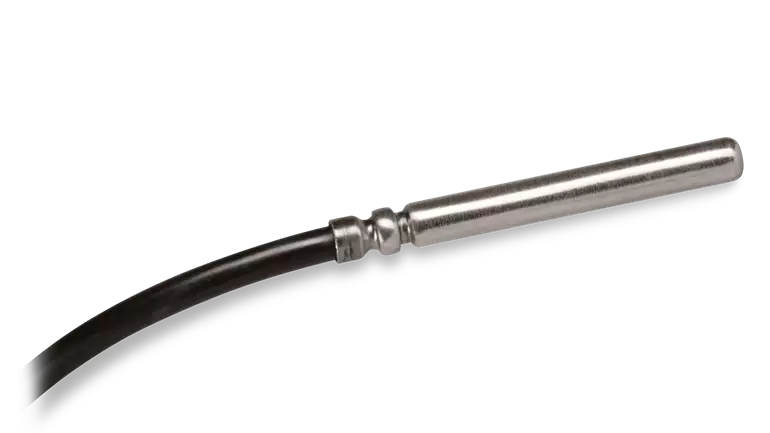

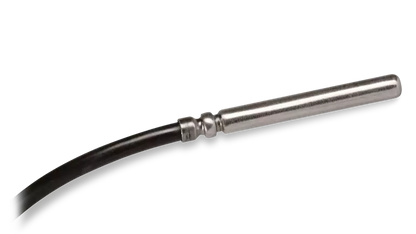

Fronius Ambient temperature sensor
Due to the large temperature range, the ambient temperature sensor is perfect for measuring ambient temperature or room temperature.
Technical Specifications:
- Dimension / length: 1500 mm
- Sensor: PT1000
- Measuring range: -50°C bis +230°C
- Tolerance: ±0.8°C (from -40°C to +100°C)
- Design: Sensor in cylindrical stainless steel housing, two-wire technology
- Diameter: 6 mm
- Connection cable: 3 m Cu cable, 2 x 0.5 mm, silicone-insulated, exposed ends, ferrules, UV-resistant
- Max. cable length (distance: Sensor Card/Box to sensor): 1,5m
-
Downloads

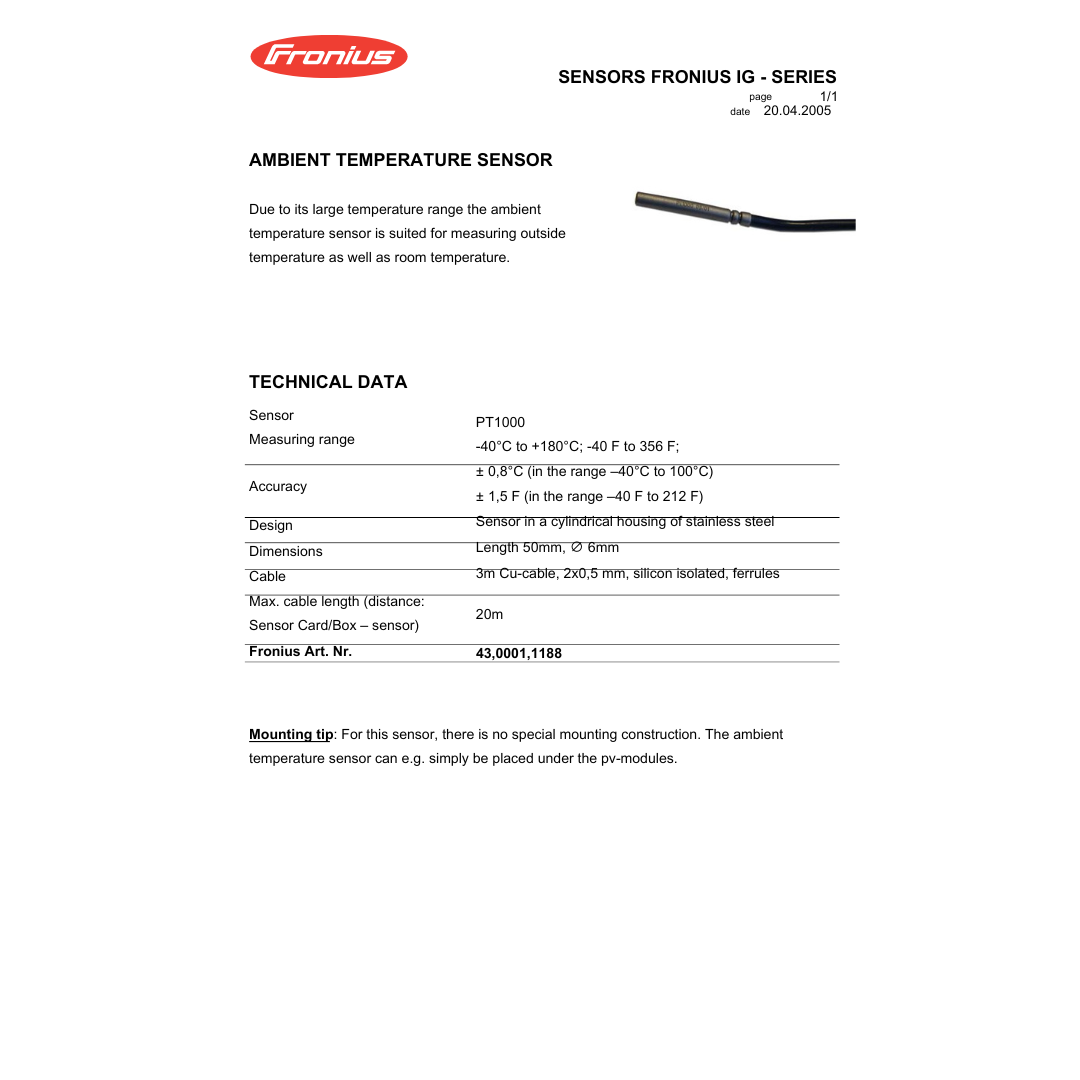

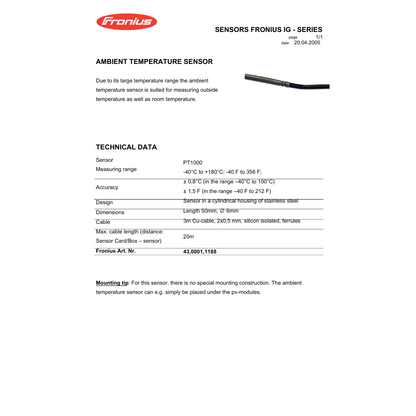

Datasheet
No datasheet available. Email info@solux.energy for file request.
Quick Installation Guide
✔️ Quick Installation Guide
