Description

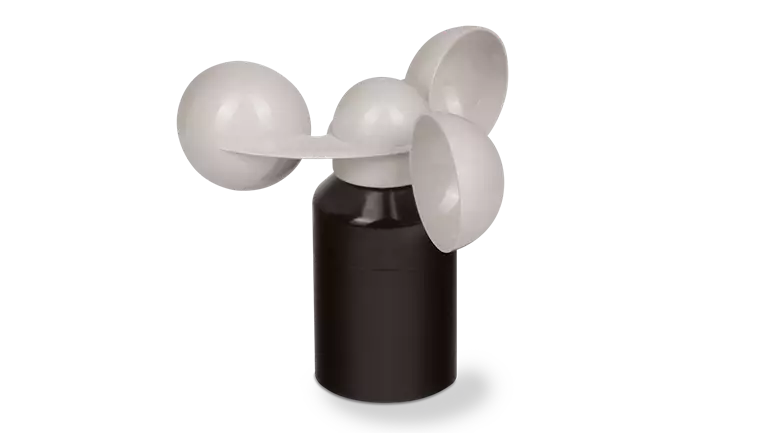

Fronius Wind Speed Sensor
This sensor measures exact wind speed and direction. It works perfectly with your other sensors to complete your home weather station.

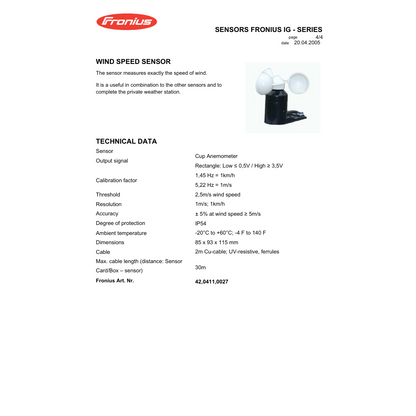

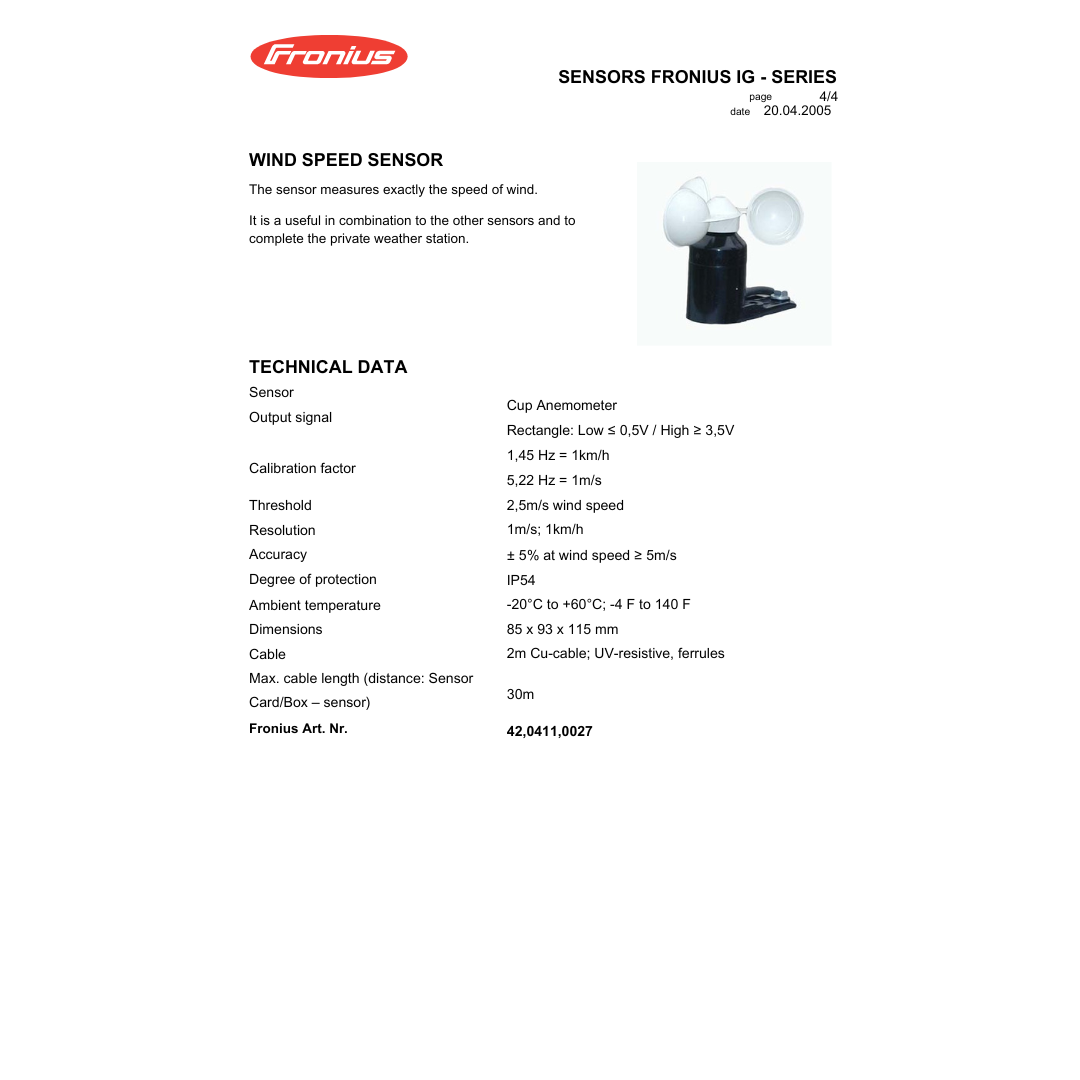

Technical Specifications:
- Dimension / length: 85 mm
- Sensor: Cup anemometer with reed contact
- Output signal: Rectangle: Low ≤ 0.5V / High ≥ 4.5 V
- Calibration factor: 5.22 Hz = 1 km/h 18.79 Hz = 1 m/s From software ver. of Fronius Sensor Card/Box / 1.1.0.28: 1.45 Hz = 1 km/h 5.22 Hz = 1 m/s
- Threshold: 2.5 m/s wind speed
- Resolution: 1 m/s 1 km/h
- Tolerance: ±5% from 5 m/s upwards
- Degree of protection: IP 54
- Permissible ambient temperature: -20°C - +60°C
- Connection cable: 2 m Cu cable, exposed ends, ferrules, UV-resistant
- Max. cable length (distance: Sensor Card/Box to sensor): 30 m
-
Resources
Datasheet
No datasheet available. Email info@solux.energy for file request.
Quick Installation Guide
✔️ Quick Installation Guide
