Description

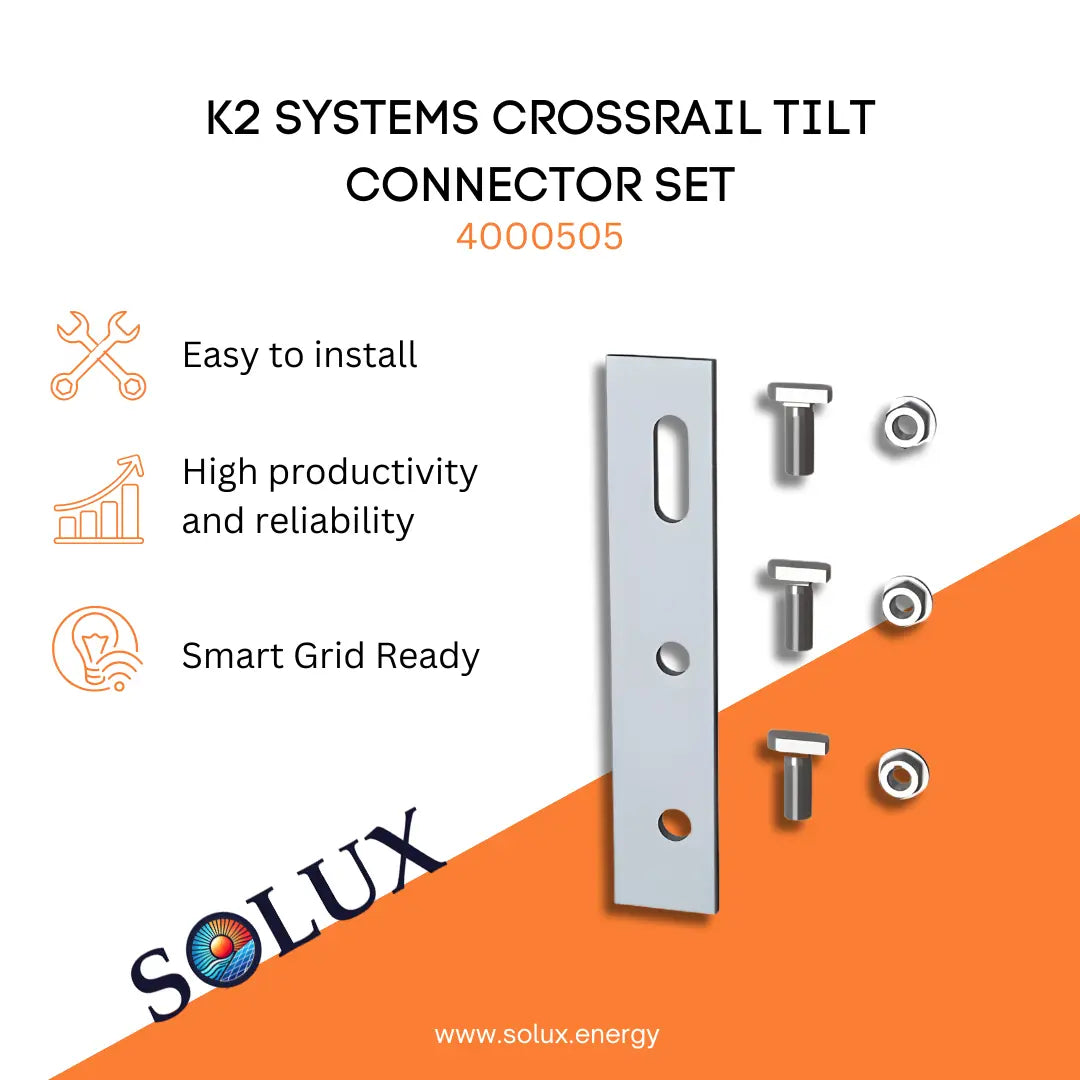

K2 Systems CrossRail Tilt Connector Set
The CrossRail Tilt Connector Set is a structural aluminum accessory for K2’s CrossRail Tilt Up solar mounting systems that connects two rail sections at a 90° angle to form the triangular base structure used in pitched or tilt‑up installations, helping create a stable foundation for tilted photovoltaic arrays while integrating with CrossRail 44‑X, 48‑X, 48‑XL, and 80 rail profiles.
- Model/Type: 4000505
- Finish: Mill
- Included Hardware: Tilt Connector Bracket + T-Bolt & Hex Nut, Set
- Durable & Certified: The CrossRail Tilt Connector Set (4000505) is made from corrosion‑resistant aluminum with stainless hardware for long‑term structural durability and is designed for use within UL 2703‑compliant PV mounting systems.
- Water Protection & Fit: The CrossRail Tilt Connector Set (4000505) does not provide or affect waterproofing and fits by joining two CrossRail sections at the correct angle to form the structural tilt base within compatible K2 CrossRail mounting systems.
-
Downloads

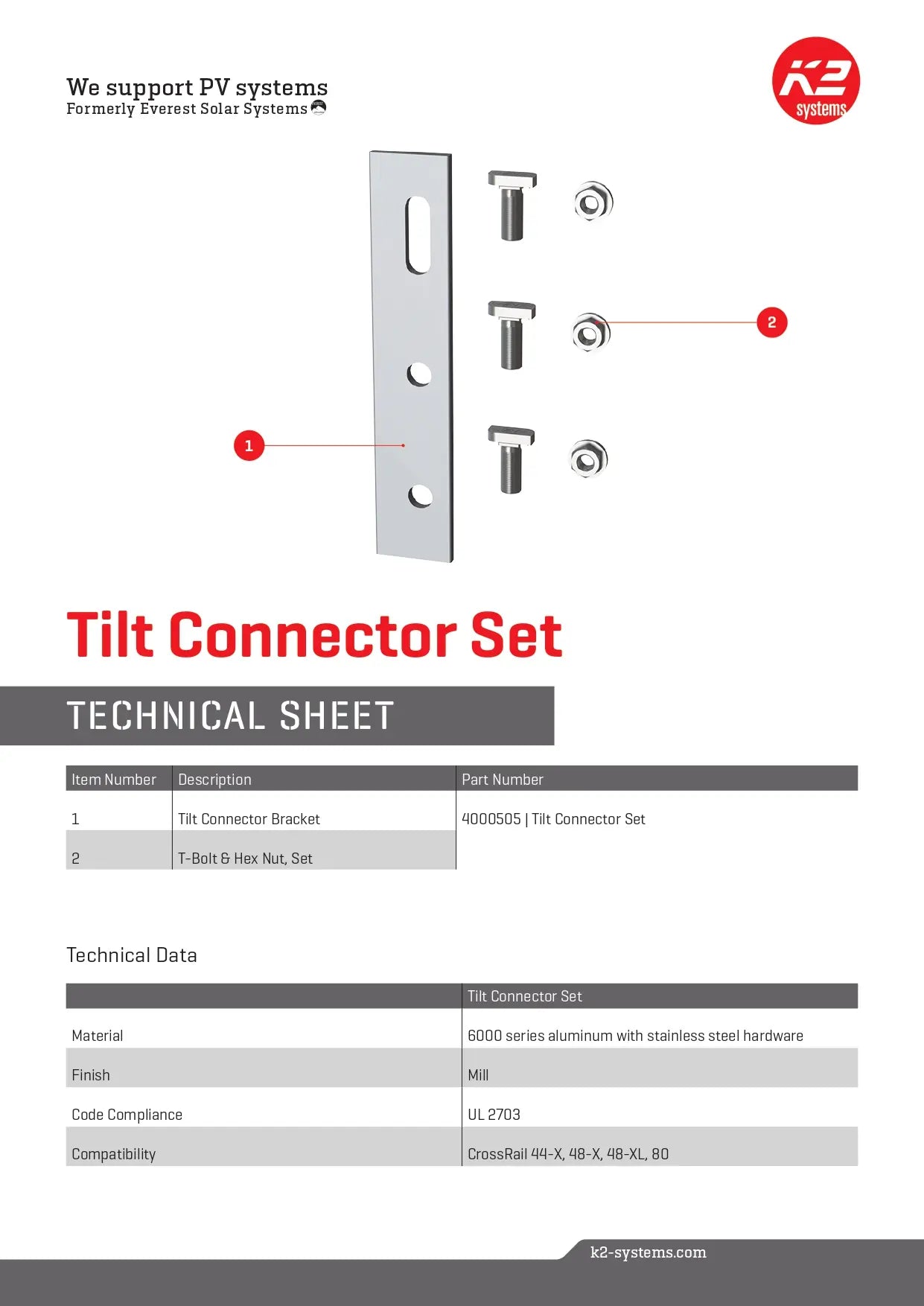

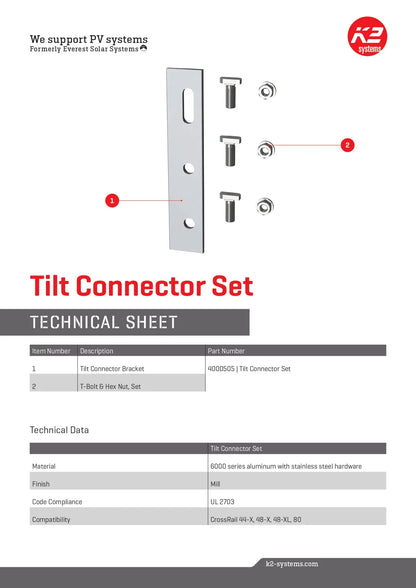

Datasheet
✔️ Datasheet
Quick Installation Guide
No quick installation guide available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
