Description

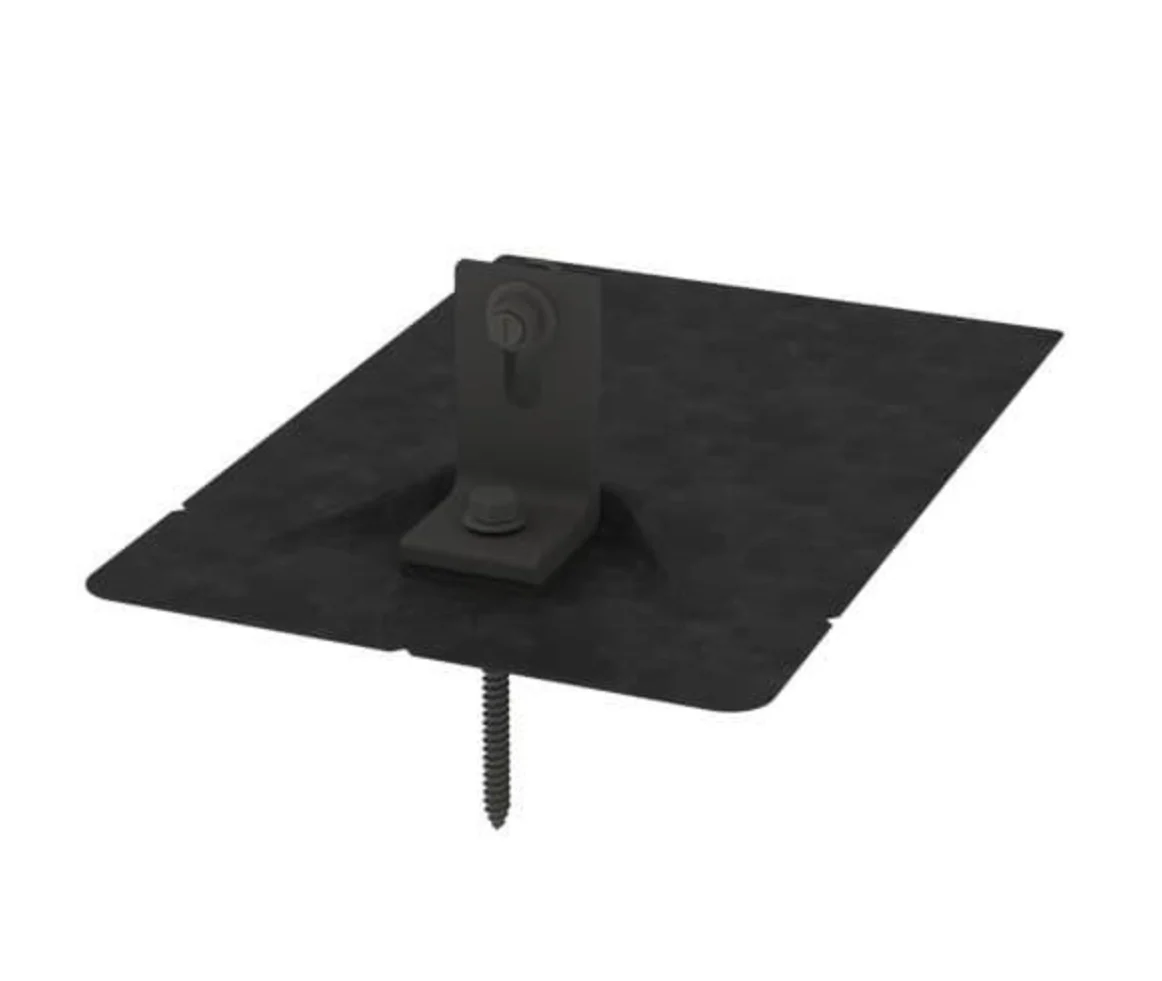

K2 Systems K2 Flash Comp Kit, Dark
The K2 Flash Comp Kit, Dark is a roof-mount flashing and L-foot attachment kit designed for composition/asphalt shingle roofs, providing a watertight seal and secure rafter connection for solar mounting systems such as CrossRail profiles (44-X, 48-X, 48-XL, 80).
- Model/Type: 4000157
- Finish: Dark
- Included Hardware: Flashing + L-Foot: Aluminum+ Hardware (T-bolt, hex nut, lag screw): Stainless steel + Sealing components: EPDM rubber washer / gasket
- Durable & Certified: Designed for structural roof attachment, capable of withstanding approximately 715 lb uplift, 705 lb downforce, and 400 lb shear loads, ensuring long-term mechanical stability in PV mounting applications.
- Water Protection & Fit: Tested and approved under UL 441 Section 27 rain testing, TAS 100-95 wind-driven rain testing, and full-submersion water testing, confirming watertight sealing performance.
-
Downloads

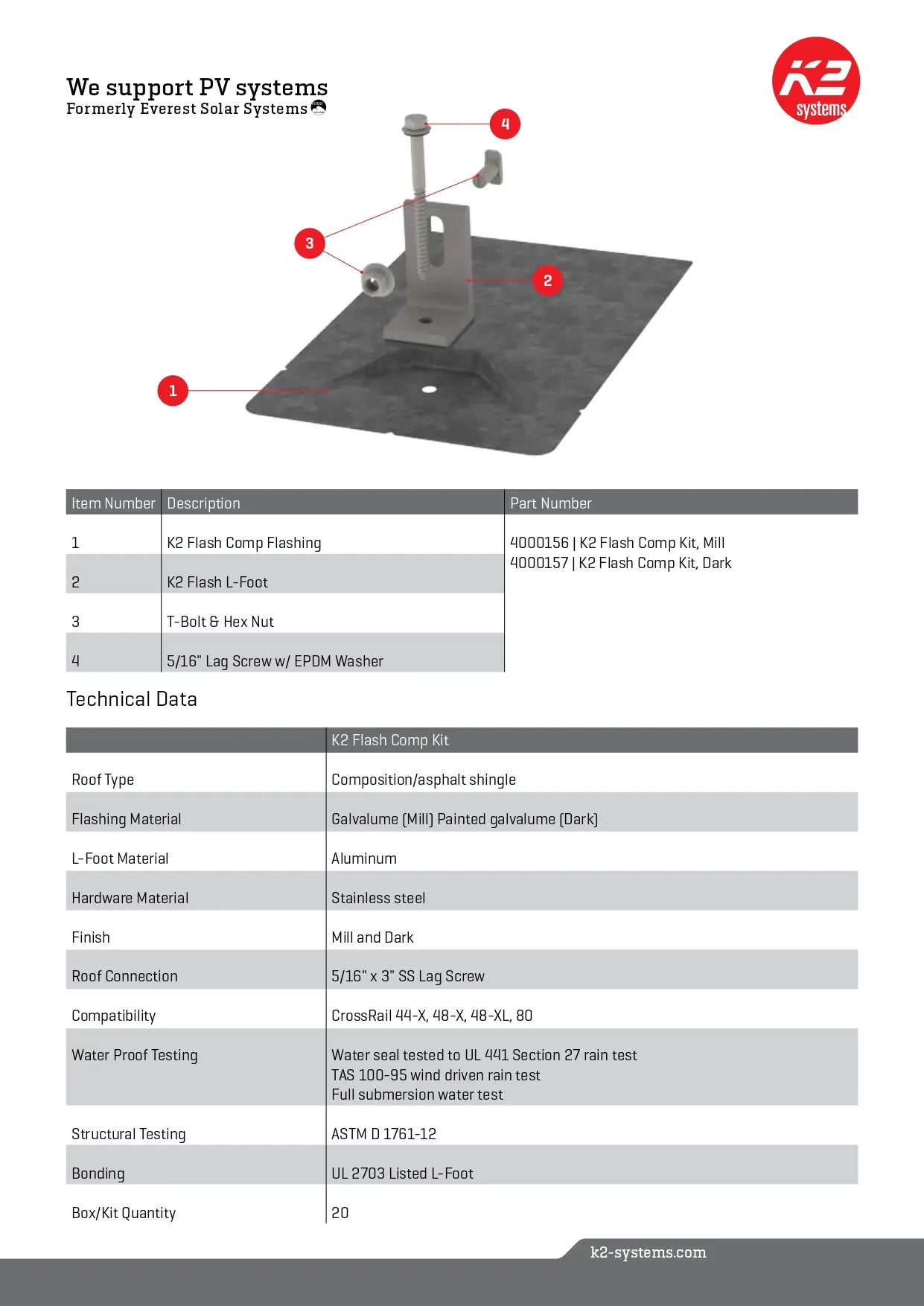

Datasheet
✔️ Datasheet
Quick Installation Guide
✔️ Quick Installation Guide
Warranty
No warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
