K2 Systems Flat Tile Hook X Kit, w/Butyl

K2 Systems Flat Tile Hook X Kit, w/Butyl

The Flat Tile Hook X Kit, w/Butyl from K2 Systems is a roof attachment hook kit engineered for flat tile roofs in photovoltaic (PV) installations. It combines a robust tile‑hook design with pre‑installed waterproofing (K2 EverSeal butyl flashing) to make roof mounting faster, cleaner, and more reliable.

• Model/Type: 4000141-B
• Finish: Mill

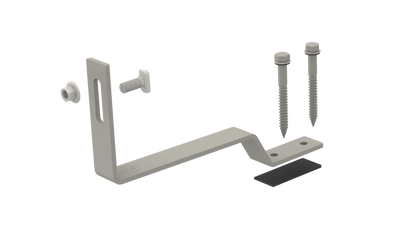

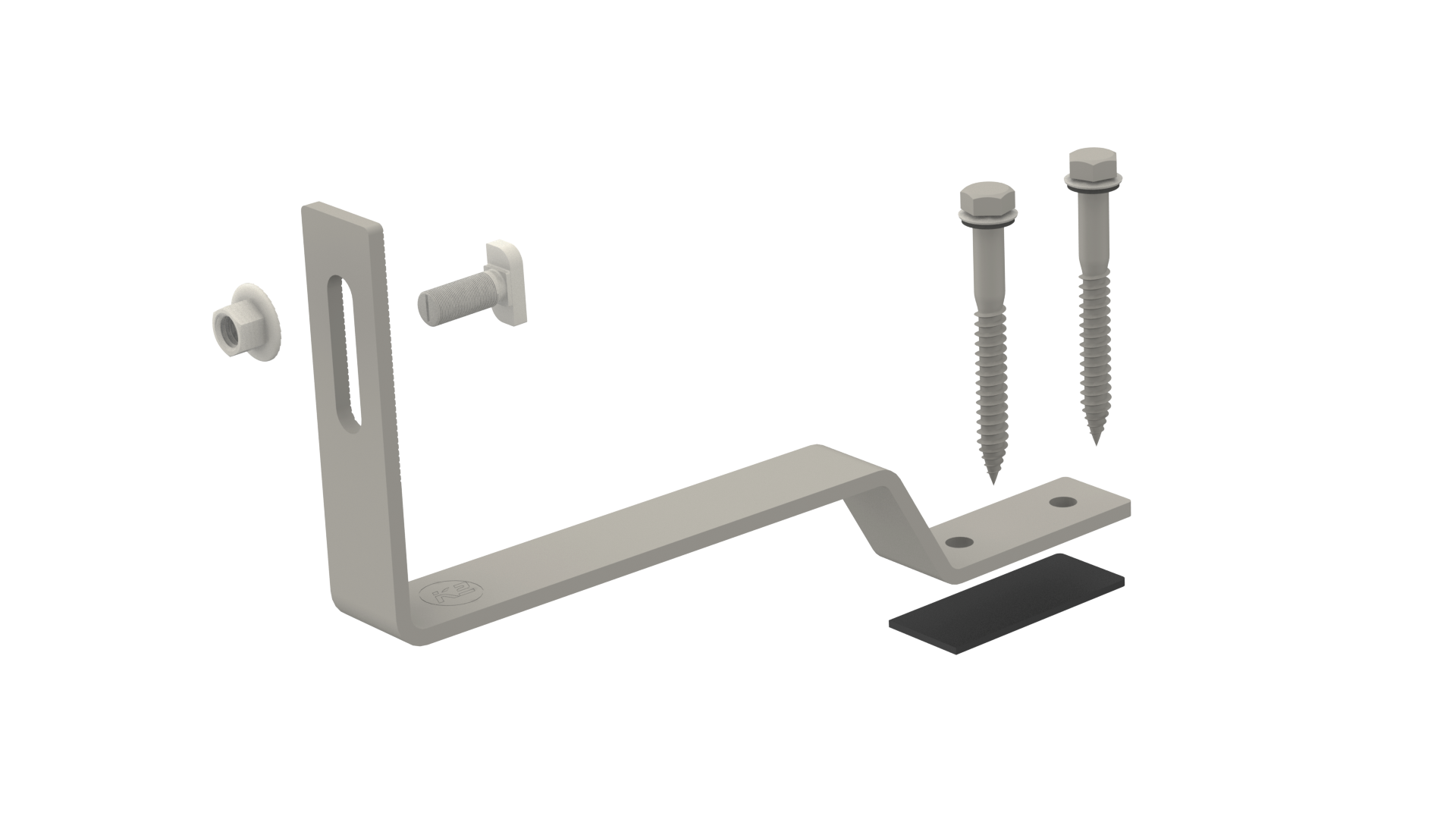

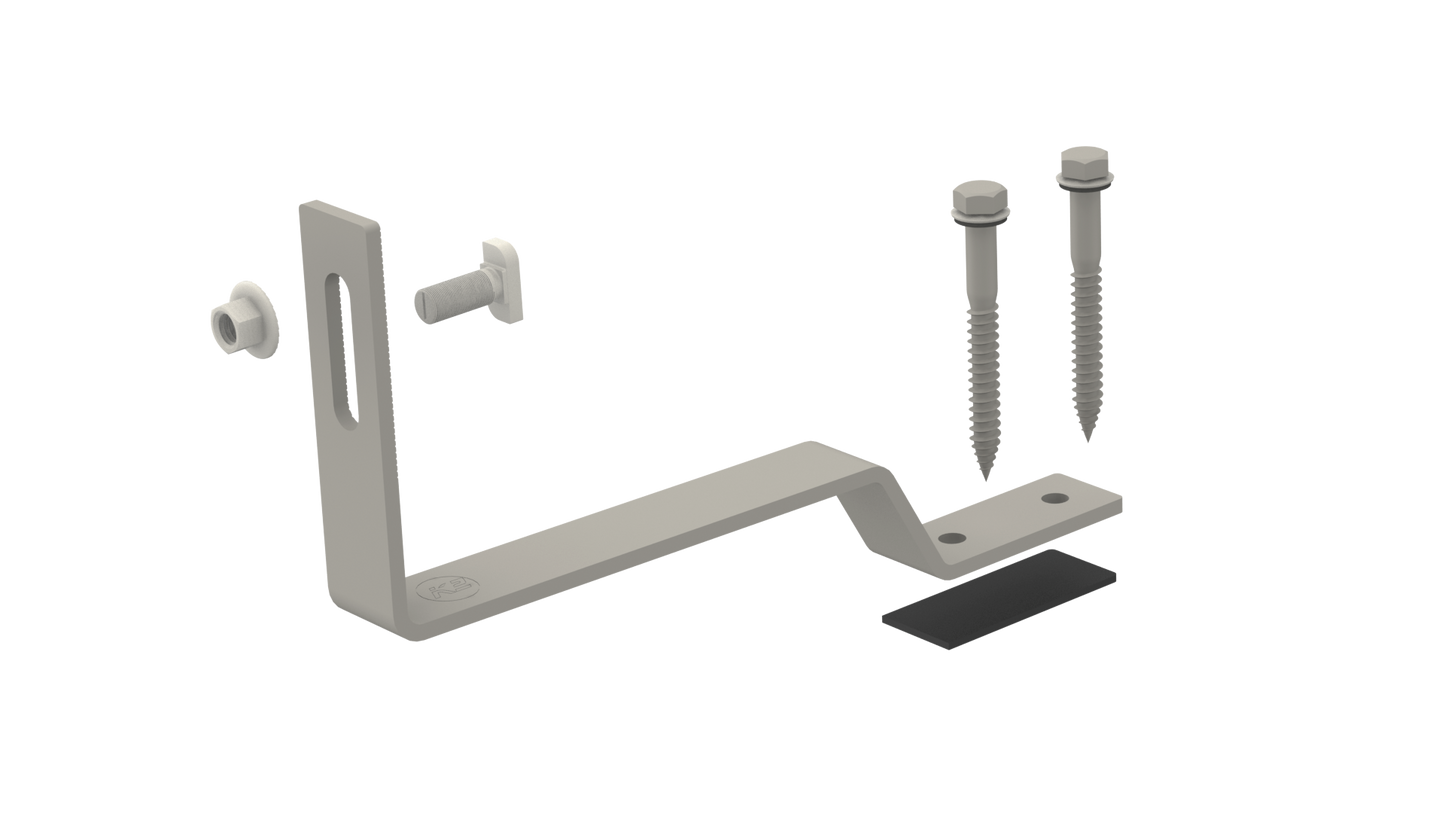

• Included Hardware: Flat Tile Hook X + K2 EverSeal butyl pad + 5/16" Lag Screws w/ EDPM Washers + T-Bolt and Serrated Hex Nut Set
• Durable & Certified: Hook body is made from high‑strength aluminum alloy with a mill (natural aluminum) finish, giving it excellent resistance to corrosion and weathering in outdoor environments while hardware are stainless‑steel which resist rust and maintain mechanical integrity when exposed to moisture and UV radiation. The Flat Tile Hook X Kit, w/Butyl is listed to UL 2703, the UL standard for mounting systems, mounting devices, and clamping devices for flat‑plate photovoltaic modules and panels.
• Water Protection & Fit: This variant comes with a factory‑applied EverSeal butyl flashing pad bonded to the base of the hook. The butyl membrane conforms to roof contours and creates a continuous waterproof barrier at the point where the hook penetrates the roof surface. The hook’s geometry is designed for use on flat tile roof profiles, allowing installers to position the hook under tile without excessive cutting or grinding.
