Unirac SM ENDCLAMP B DRK AL (Sold Individually, Pkg Qty 20)

Unirac SM ENDCLAMP B DRK AL (Sold Individually, Pkg Qty 20)

The Unirac SolarMount Size B End Clamp grips the outside edges of low-profile solar panels with 30mm to 32mm frame depths. This preassembled aluminum piece slides easily into your racking rails so your crew does not have to fumble with small parts on a roof. The matte dark bronze finish matches black panel frames perfectly so the hardware stays hidden from view below. Once you tighten the built-in 2-inch bolt, the clamp holds down hard to keep your modules perfectly secure in heavy winds.

Available Finishes / Color:

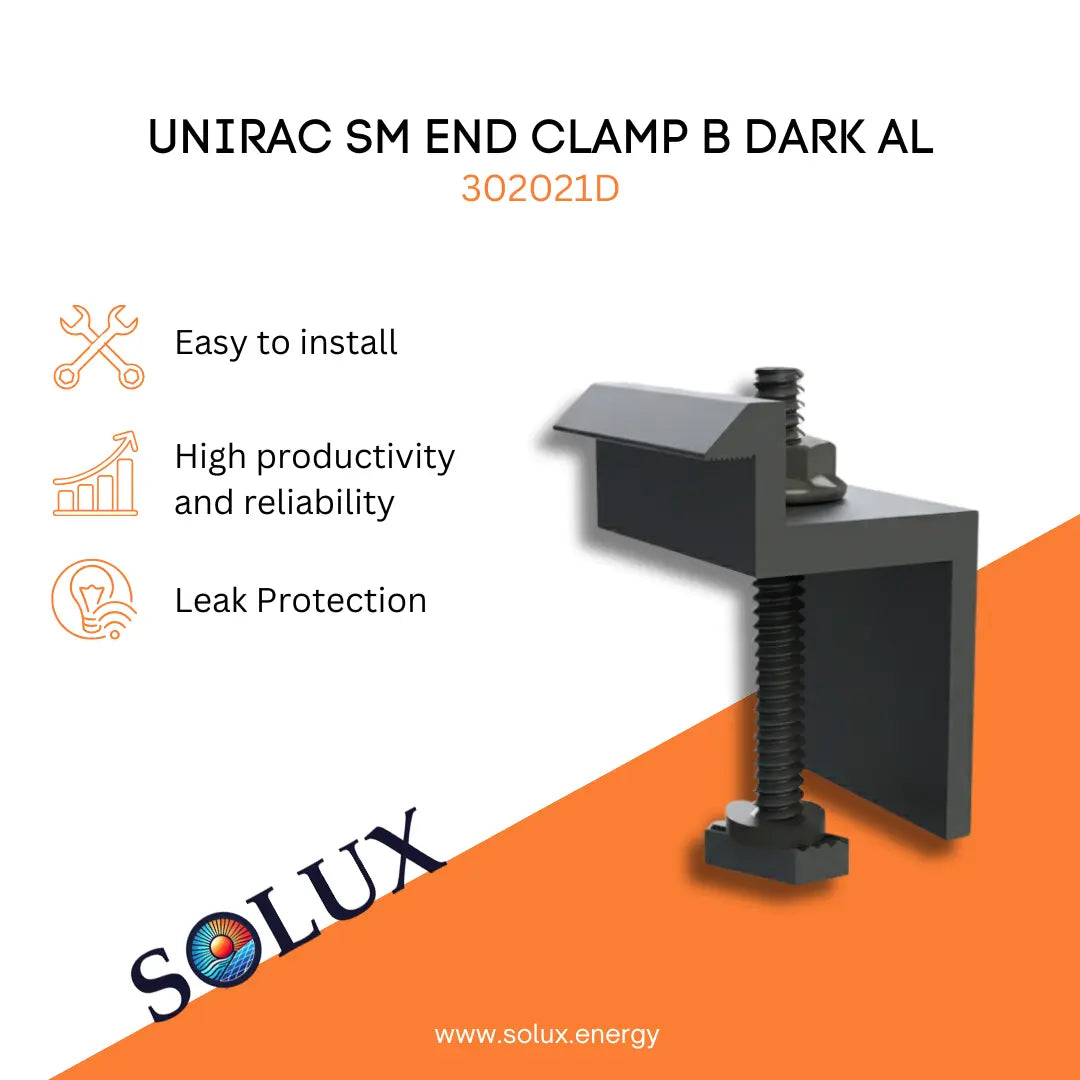

• SM ENDCLAMP B DRK AL: 302021D

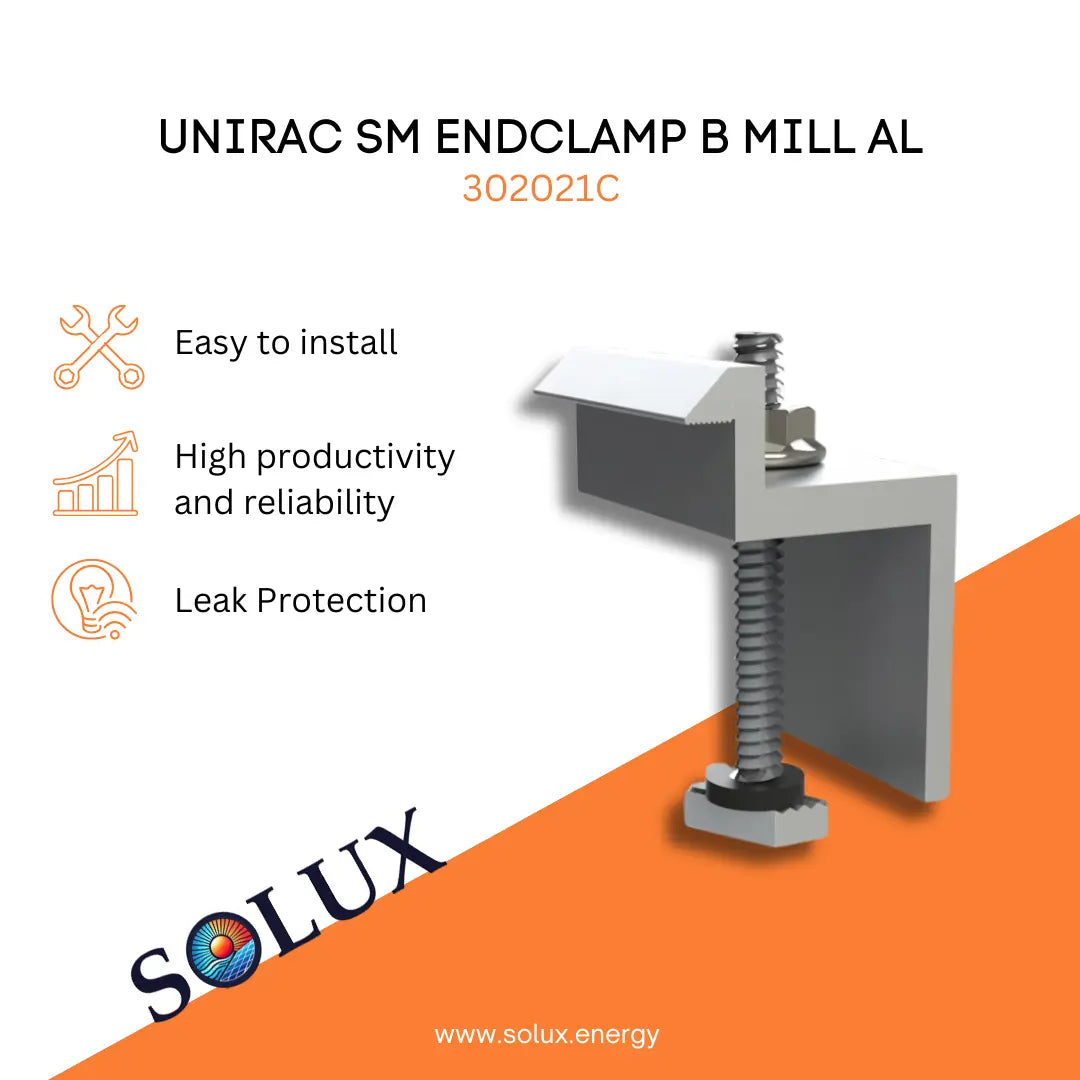

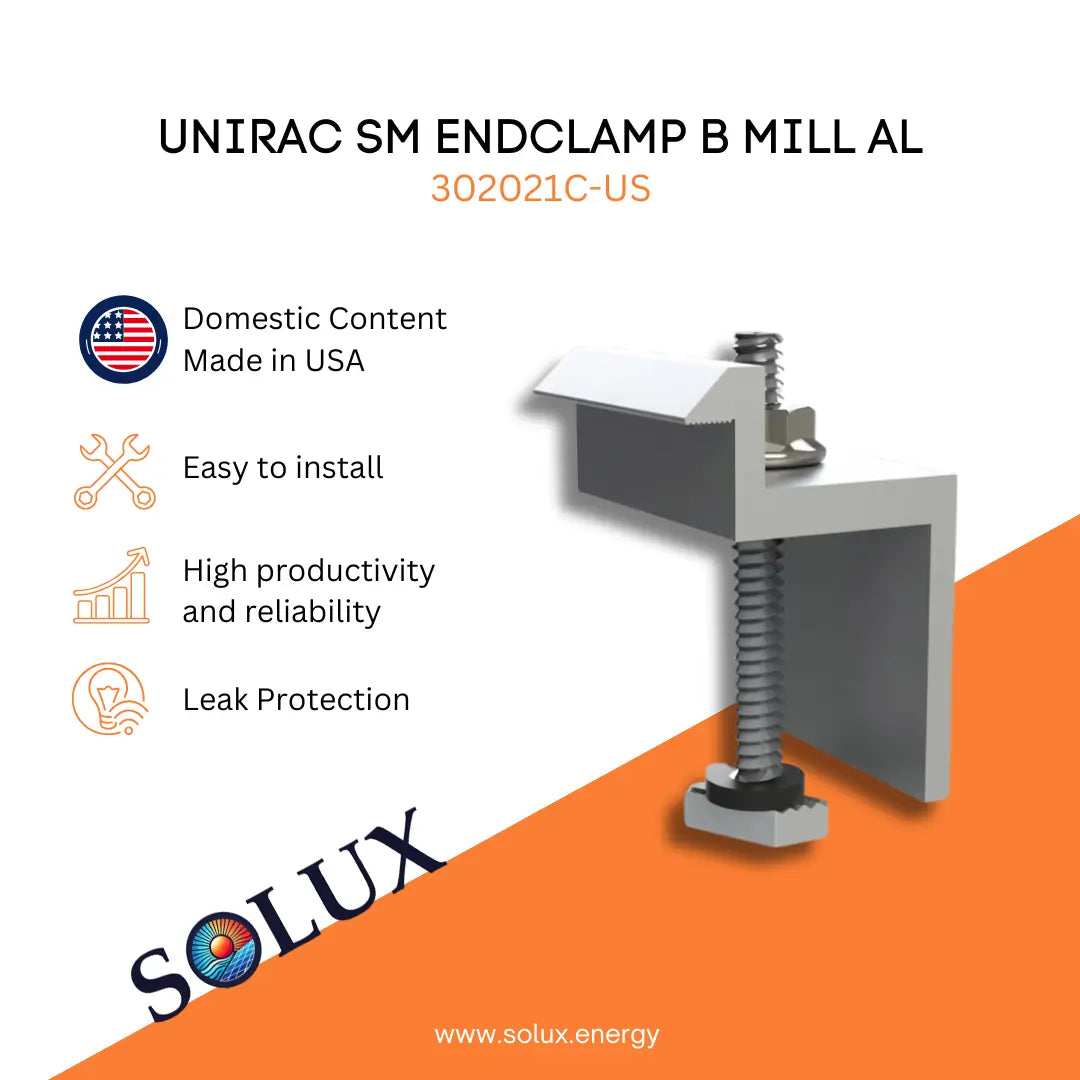

• SM ENDCLAMP B MILL AL: 302021C-US / 302021C

Key Features:

• Fits solar module frames: 30–32 mm (1.18"–1.26")
• Preassembled design for faster installation
• Dark anodized finish for improved aesthetics and weather resistance
• Compatible with Unirac SolarMount rail-based systems
• Commonly used in residential and commercial PV installations

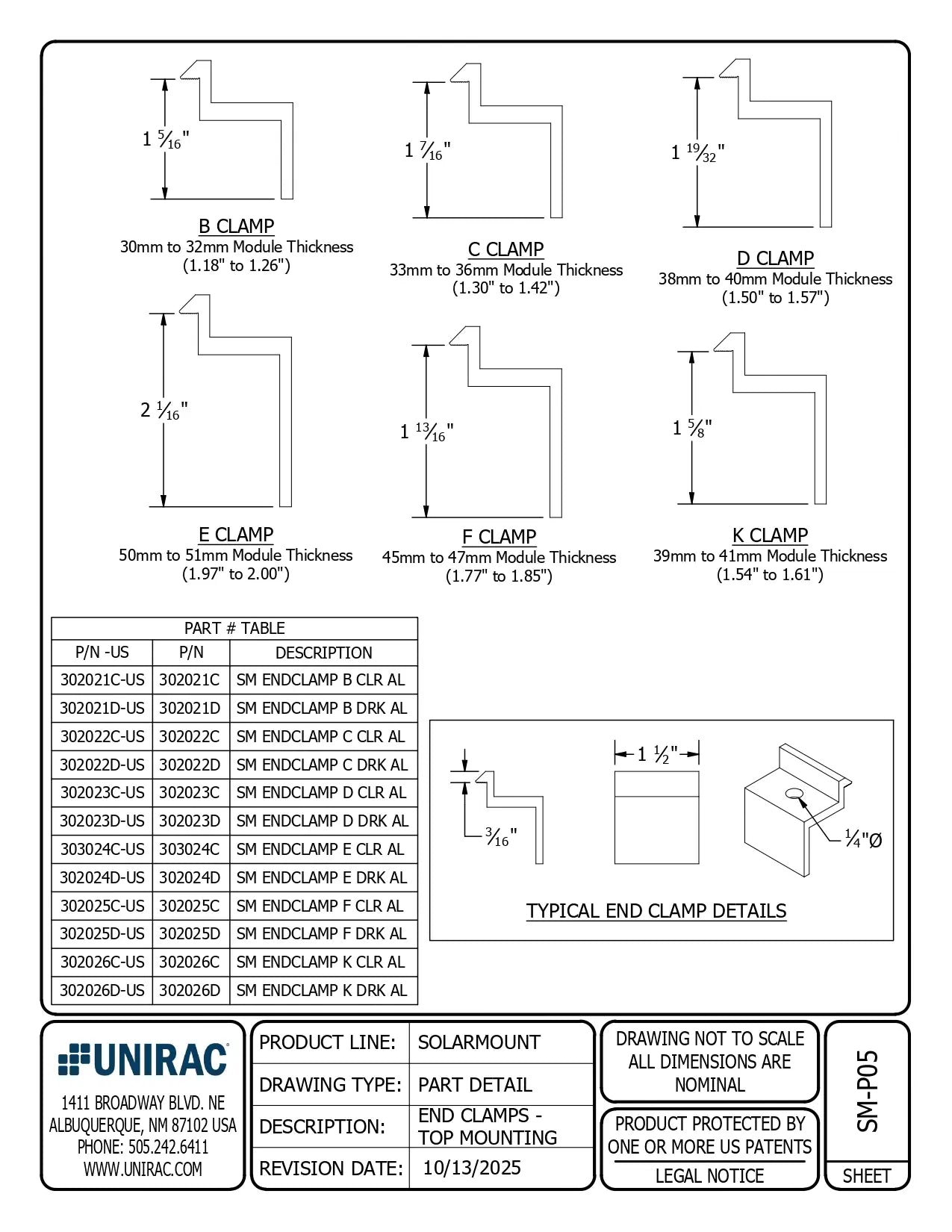

Technical Specification:

• Product Type: Solar panel end clamp
• Clamp Type: Preassembled top-mount end clamp
• Module Frame Size: 30–32 mm (1.18"–1.26")
• Material: Aluminum
• Finish/Color: Dark bronze anodized / black and Mill
• Bolt Size: 2" bolt
• Application: Rail-based solar mounting systems
• Compatibility: Unirac SolarMount systems
• Weight: Approx. 0.1 lb (45 g)
