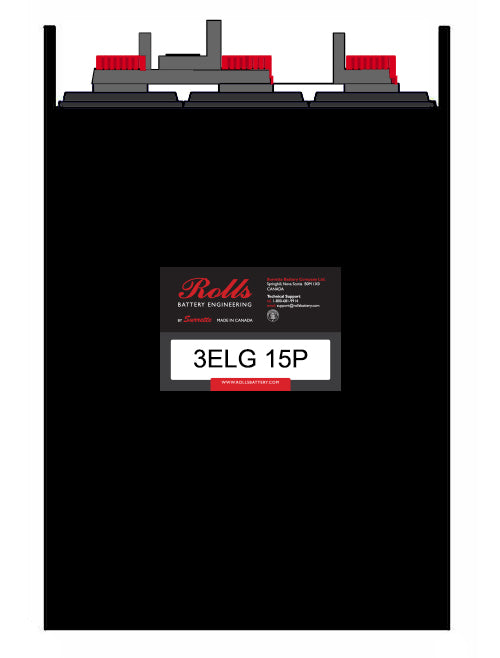

Rolls Surrette 3-ELG-15P 6V 390Ah Flooded Deep Cycle Battery

Rolls Surrette Battery 6 EHG 31P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards. This unit features a 390 Ah capacity at the 20-hour rate and legendary durability.

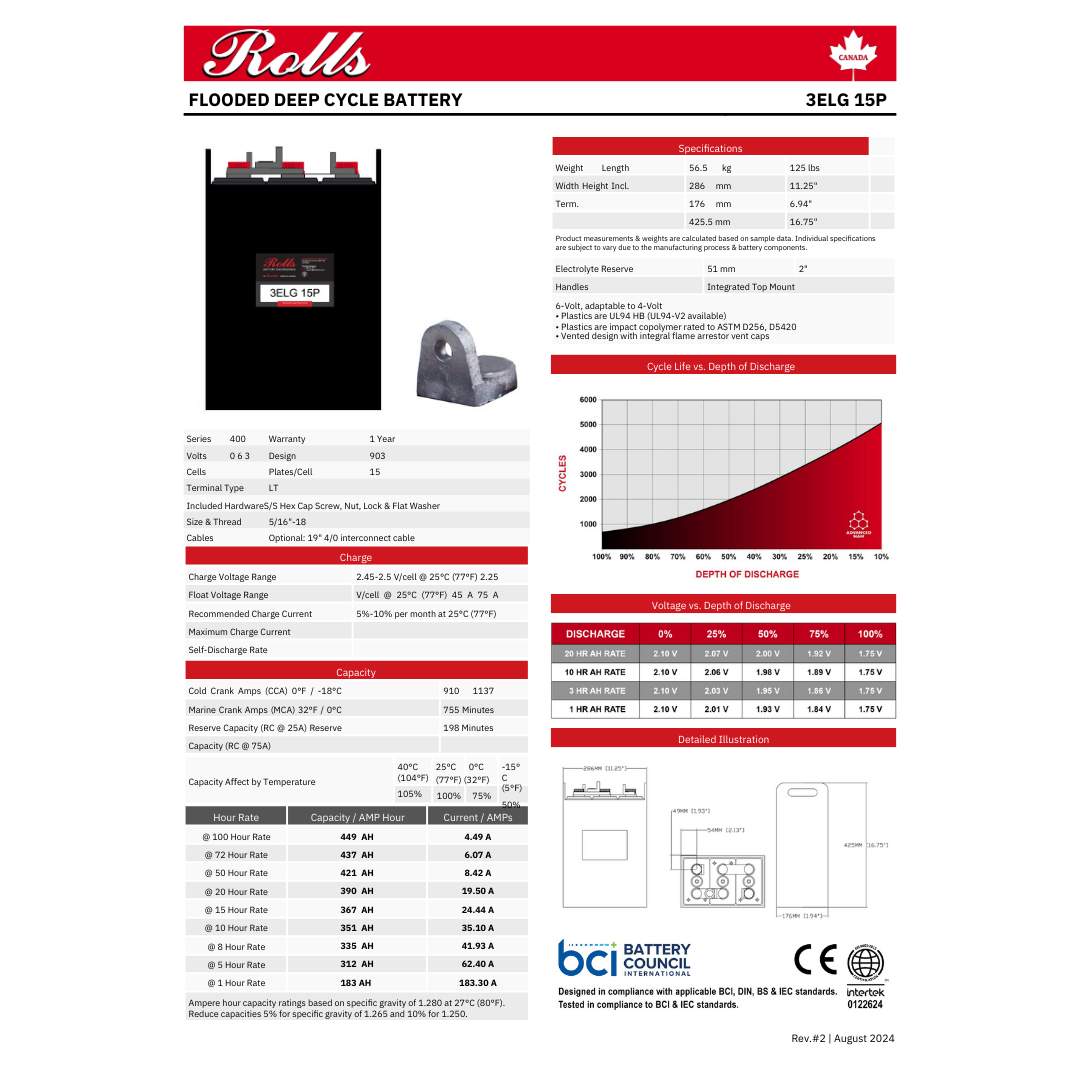

Technical Specifications:

• Weight: 56.5 kg / 125 lbs
• Length: 286 mm / 11.25"
• Width: 176 mm / 6.94"
• Height Incl. Term.: 425.5 mm / 16.75"
• Electrolyte Reserve: 51 mm / 2"
• Handles: Integrated Top Mount
• Series: 4000
• Volts: 6
• Design: 903
• Cells: 3
• Plates/Cell : 15
• Terminal Type: LT
• Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
• Size & Thread: 5/16"-18
• Cables Optional: 19" 4/0 interconnect cable
• Charge Voltage Range: 14.7-15 V/cell @ 25°C (77°F)
• Float Voltage Range 2.25 V/cell @ 25°C (77°F)
• Recommended Charge Current: 45 A
• Maximum Charge Current:75 A
• Self-Discharge Rate 5%-10% per month at 25°C (77°F)
• Cold Crank Amps (CCA) 0°F / -18°C: 910
• Marine Crank Amps (MCA) 32°F / 0°C: 1137
• Reserve Capacity (RC @ 25A): 755 Minutes
• Reserve Capacity (RC @ 75A): 198 Minutes
• Capacity AMP @ 20 Hour Rate: 390 Ah
