SnapNrack 242-02073-USA Ultra Rail End Clamp

SnapNRack 242-02073-USA ULTRA RAIL END CLAMP

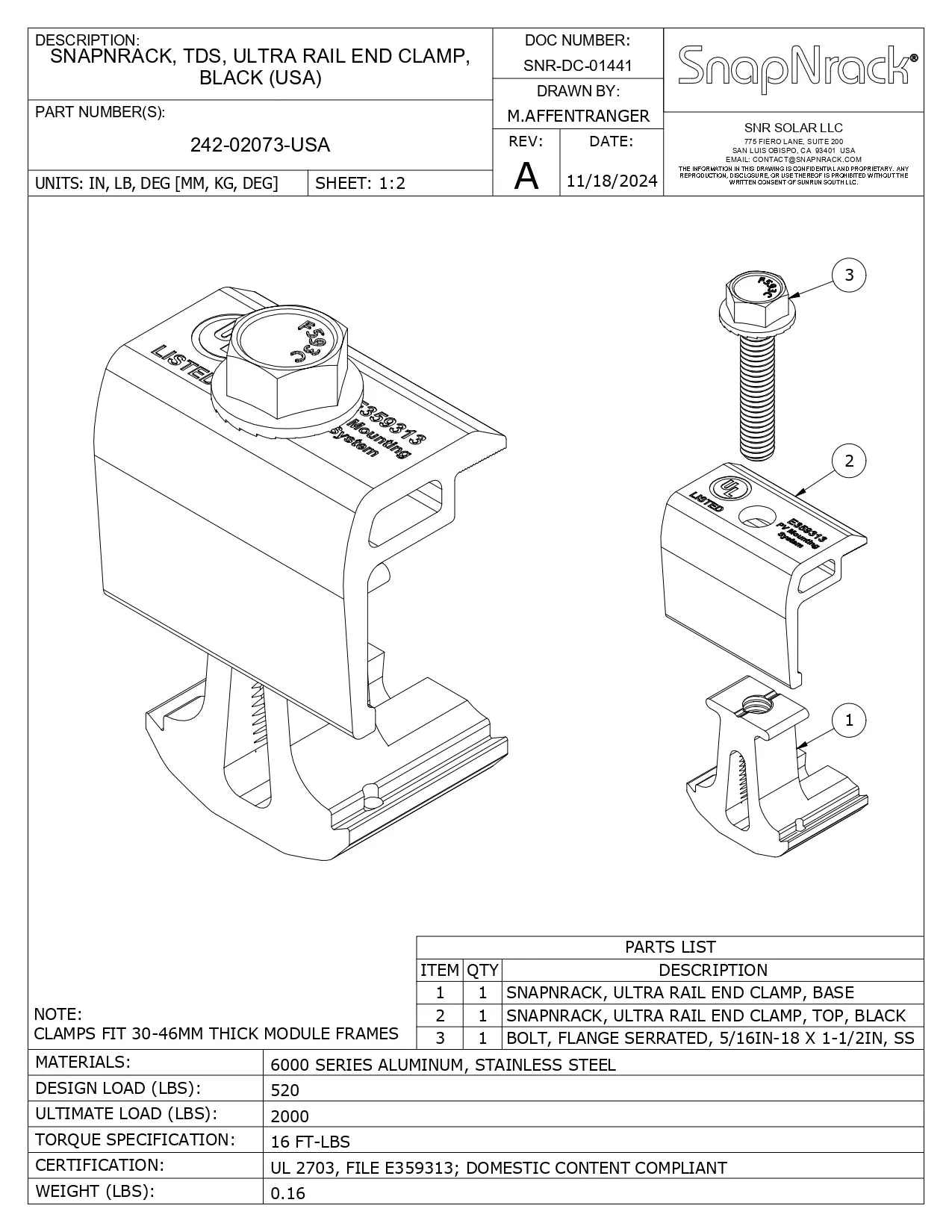

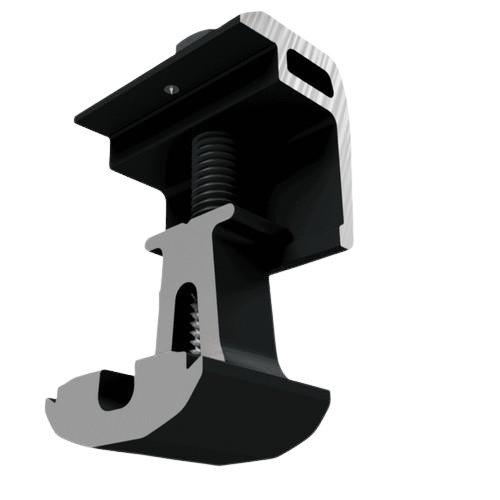

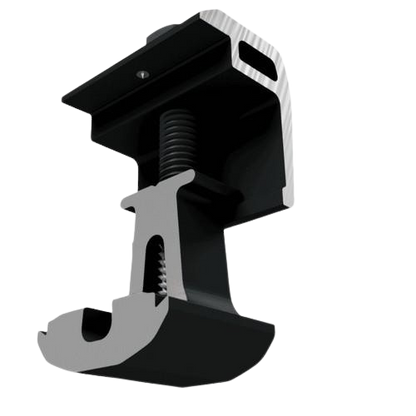

The SnapNrack Ultra Rail End Clamp (242-02073-USA) is a 0.16 lb black-anodized aluminum fastener that secures the outer edges of a solar array with 2,000 lbs of strength. As part of SnapNrack’s Domestic Content family, this USA-made clamp provides the documentation needed to qualify for the IRA’s Domestic Content Bonus Credit on commercial and TPO projects. It slides into the rail channel, letting you secure and bond the final module from underneath using a 1/2" socket. Engineered with UL 2703 certified grounding for 30 to 46 mm frames, it holds panels under high wind loads without visible, protruding hardware.

Key Specification:

• Manufacturer Part Number: 242-02073-USA
• Manufacturer Warranty: 25 Years
• Shipping Weight: 0.16 lb
