Rolls Surrette 12-MD-325P 12VDC 325Ah Deep Cycle Battery

Rolls Surrette Battery 12 MD 325P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.

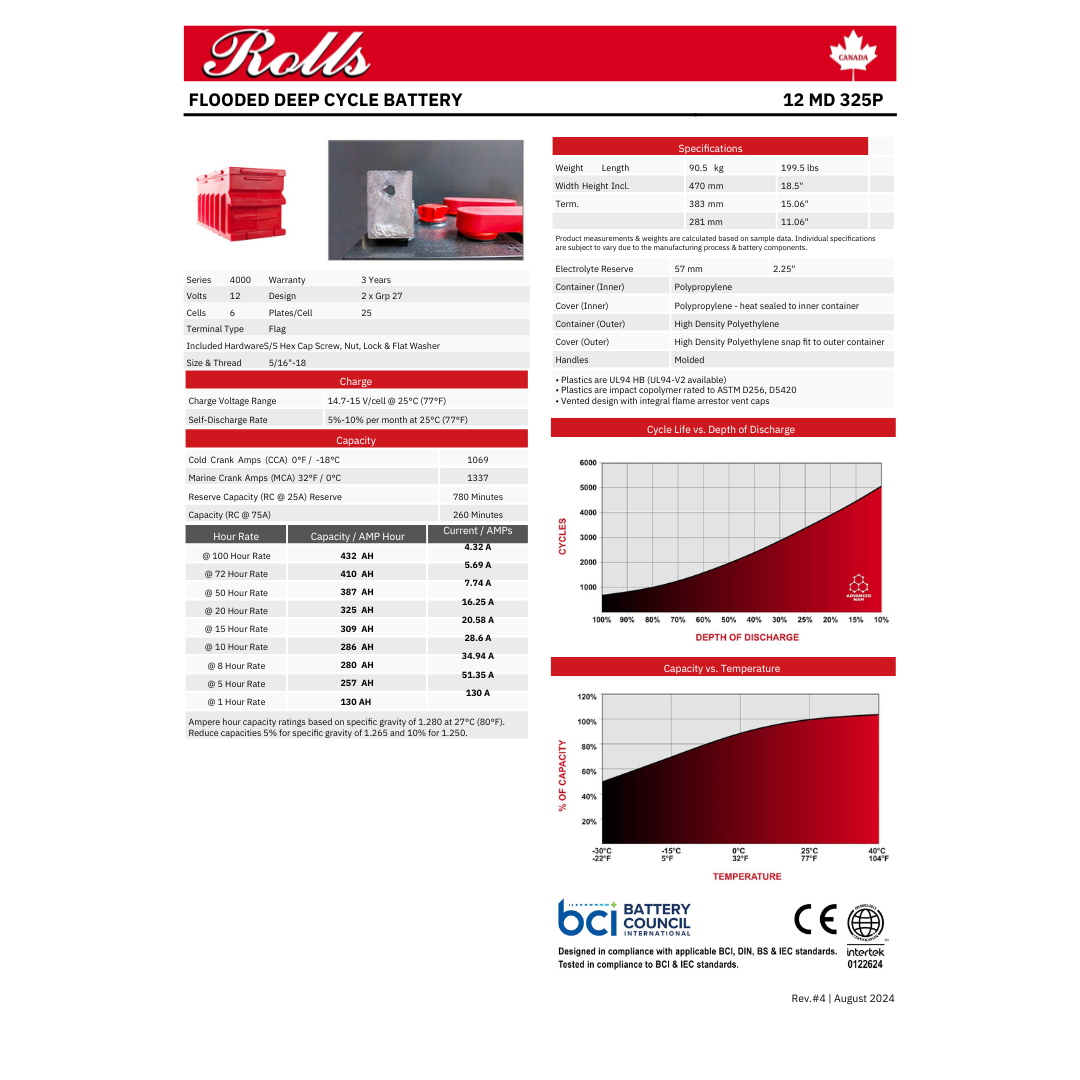

Technical Specifications:

• Weight: 90.5 kg / 199.5 lbs
• Length: 470 mm / 18.5"
• Width: 383 mm / 15.06"
• Height Incl. Term.: 281 mm / 11.06"
• Electrolyte Reserve: 57 mm / 2.25"
• Container (Inner): Polypropylene
• Cover (Inner): Polypropylene - heat sealed to inner container
• Container (Outer): High Density Polyethylene
• Cover (Outer): High Density Polyethylene snap fit to outer container
• Handles : Molded
• Series: 4000
• Volts: 12
• Design: 2 x Grp 27
• Cells: 6
• Plates/Cell: 25
• Terminal Type: Flag
• Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
• Size & Thread: 5/16"-18
• Charge Voltage Range: 14.7-15 V/cell @ 25°C (77°F)
• Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
• Cold Crank Amps (CCA) 0°F / -18°C: 1069
• Marine Crank Amps (MCA) 32°F / 0°C: 1337
• Reserve Capacity (RC @ 25A): 780 Minutes
• Reserve Capacity (RC @ 75A): 260 Minutes
• Capacity AMP @ 20 Hour Rate: 325 Ah
