Description
Rolls Surrette Battery 12 CS 13P
Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.Technical Specifications:
- Weight: 136 kg / 300 lbs
- Length: 492 mm / 19.38"
- Width: 273 mm / 10.75"
- Height Incl. Term.: 425 mm / 16.75"
- Electrolyte Reserve: 8.6 mm / 3.38"
- Handles : Integrated Top Mount
- Series: 5000
- Volts: 12
- Design: SPEC
- Cells: 6
- Plates/Cell: 131
- Terminal Type: Flag L
- Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
- Size & Thread: 5/16"-18
- Charge Voltage Range: 14.7-15 V/cell @ 25°C (77°F)
- Recommended Charge Current: 45 A
- Maximum Charge Current: 70 A
- Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 1045
- Marine Crank Amps (MCA) 32°F / 0°C: 1306
- Reserve Capacity (RC @ 25A): 1068 Minutes
- Reserve Capacity (RC @ 75A): 356 Minutes
- Capacity AMP @ 20 Hour Rate: 375 Ah
-
Downloads
Datasheet
✔️ Download Datasheet
Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
5 Years Warranty

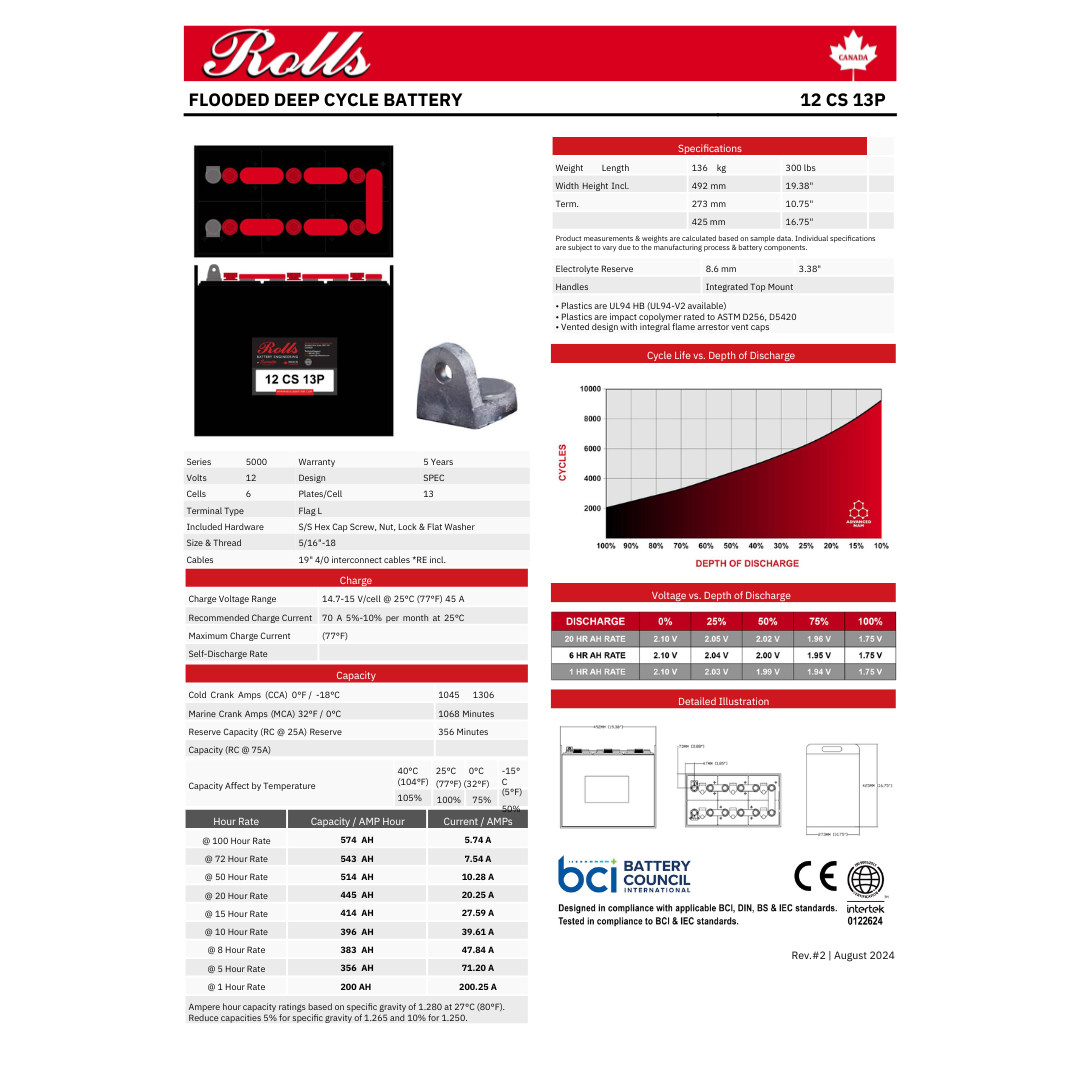

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
