Pointguard 11130005 Battery Pack 8

Pointguard 11130005 Battery Pack 8

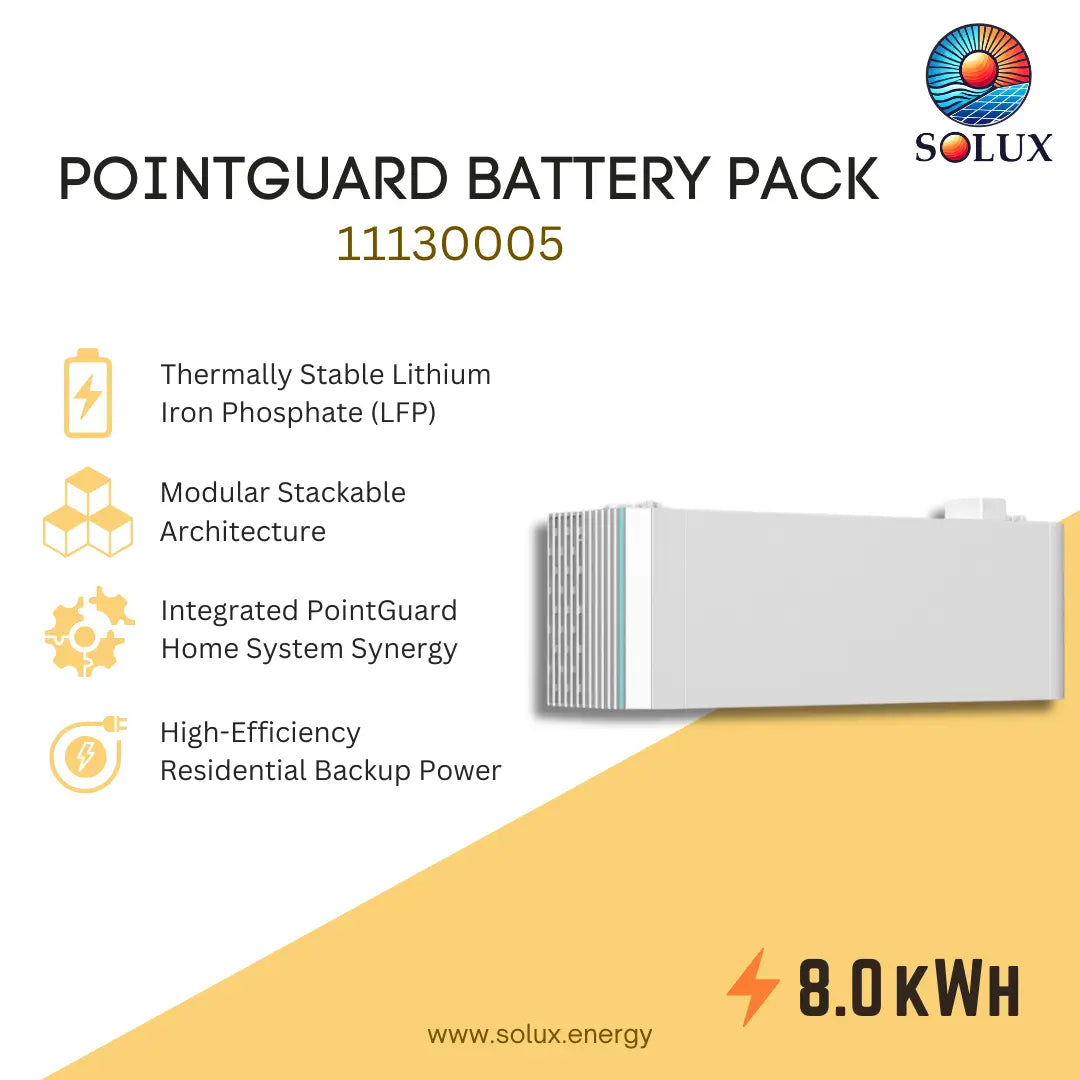

PointGuard 11130005 is an 8.0 kWh battery pack produced by PointGuard Energy Inc., using Lithium Iron‑Phosphate (LFP) chemistry.

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Nominal Capacity: 8.0 kWh
• Usable Capacity: Approximately 7.8 kWh
• Max Charge/Discharge Power: 4.35 kW
• Peak Power (10 seconds): 6.525 kW
• Nominal Voltage: Approximately 51.2 V
• Dimensions (W × H × D): 32.2 × 10.6 × 10.2 inches (818 × 270 × 260 mm)
• Weight: 160.9 lbs (73 kg)
• Mounting Options: Floor-standing or wall-mounted
• Safety Certifications: UL9540A, UL9540, UL1973, UL1998, UN38.3, CP65, FCC Part 15
